Yale 1914 hinged Rear #21-2

Yale Motorcycle Rear Fender for 1914/15

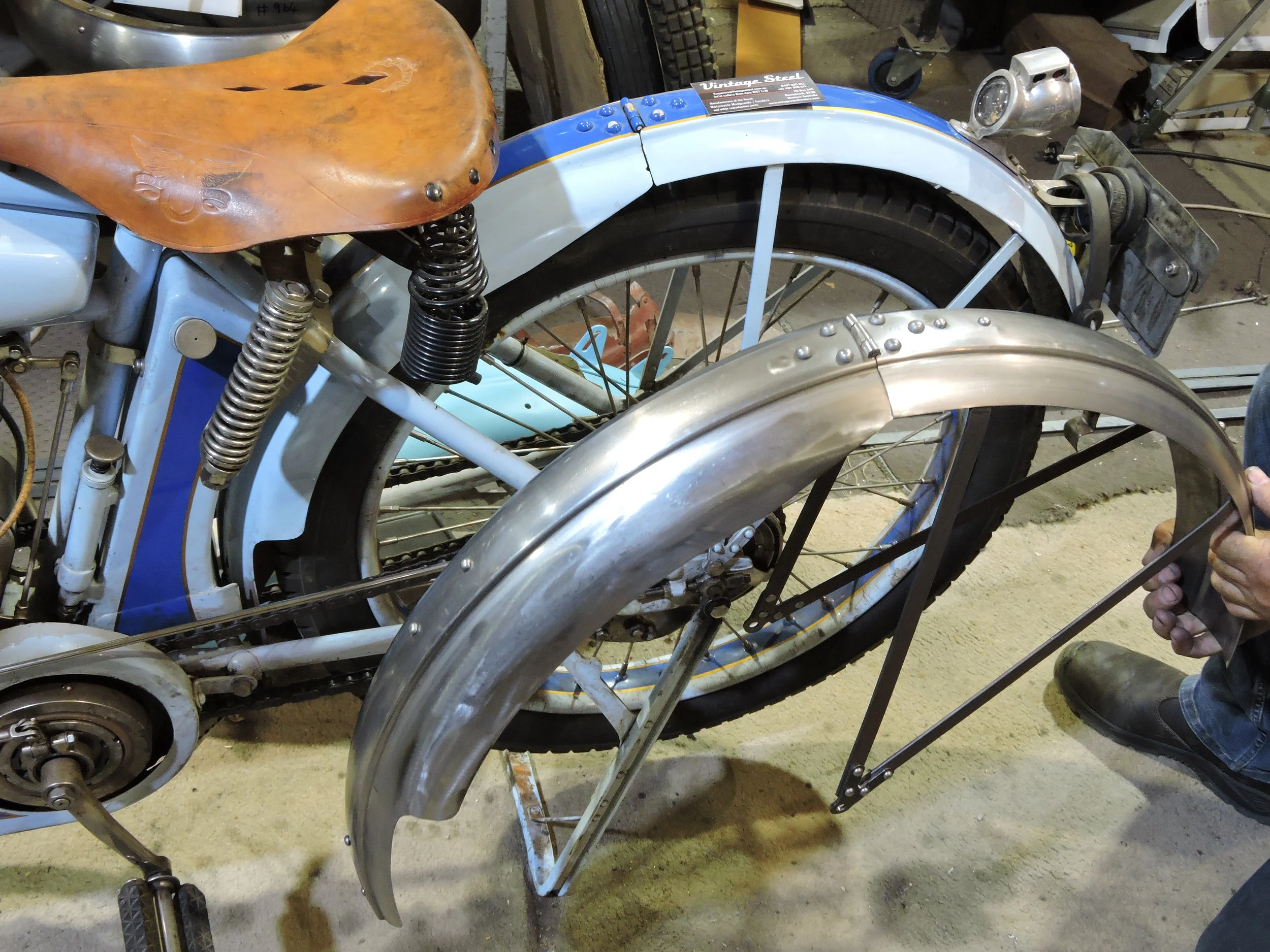

This two piece hinged rear fender was introduced for the 1914 Yale models with deep sides on the nose half. The finished width of the nose half is 4.5 - 4.75”, the tail piece is 4.06”. This piece with wide centre rib and deep sides has two riveted reinforcing pieces at the frame mounting points and a cutaway section for chain clearance on the left. Due to its rarity, making special tooling is cost prohibitive so the sides have been welded onto the main blade. The tail piece with the same wide rib but without the deep sides has two riveted loop stays. The loop stays are held in the fender blade by shaped riveted retaining plates and joined at the lower end by rivets to a laser cut lower V bracket. The two halves of the fender are joined with a riveted hinge. Each piece of the rear fender and front fender are all available separately.
Complete hinged fender as pictured AU$2723 #21YALRF-2

Nose Half only #21YALRF-1 AU$1443
Tail Half only (includes hinge) #21YALTF-1 AU$1500
