Rudge Ulster 1932 Front #31-8W
/ Michael Rock1932 Rudge Ulster Front mudguard by Vintage Steel

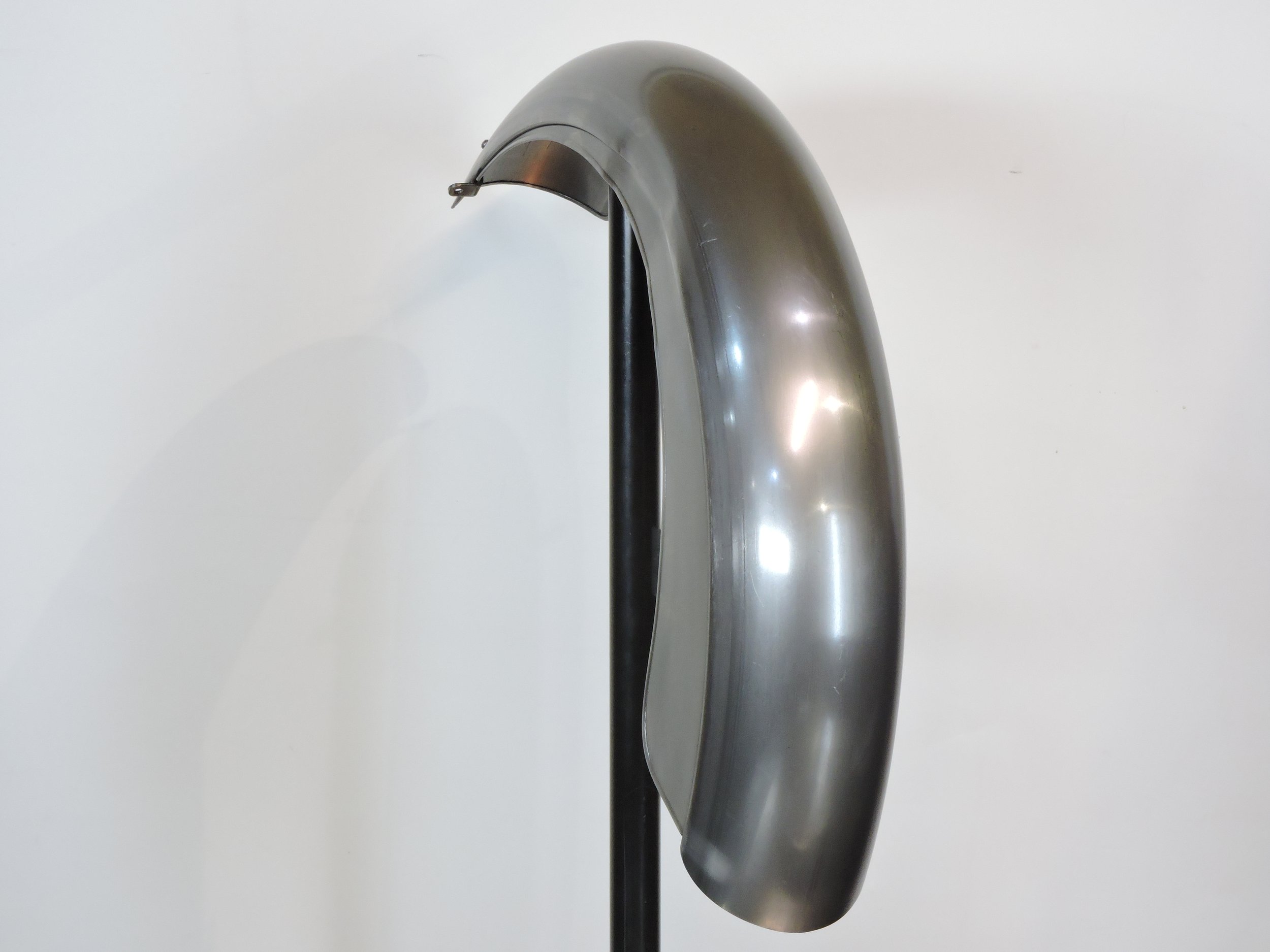

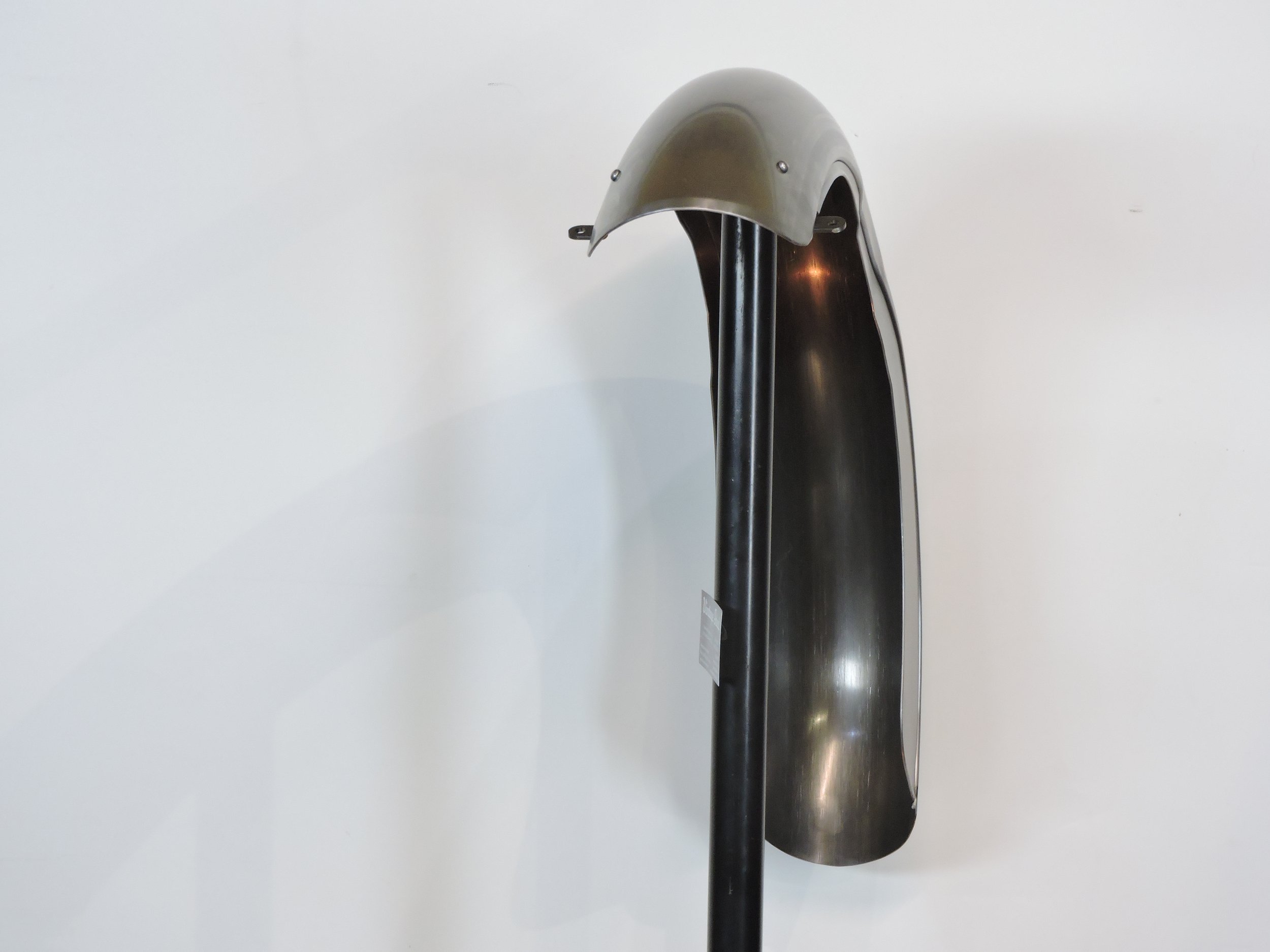

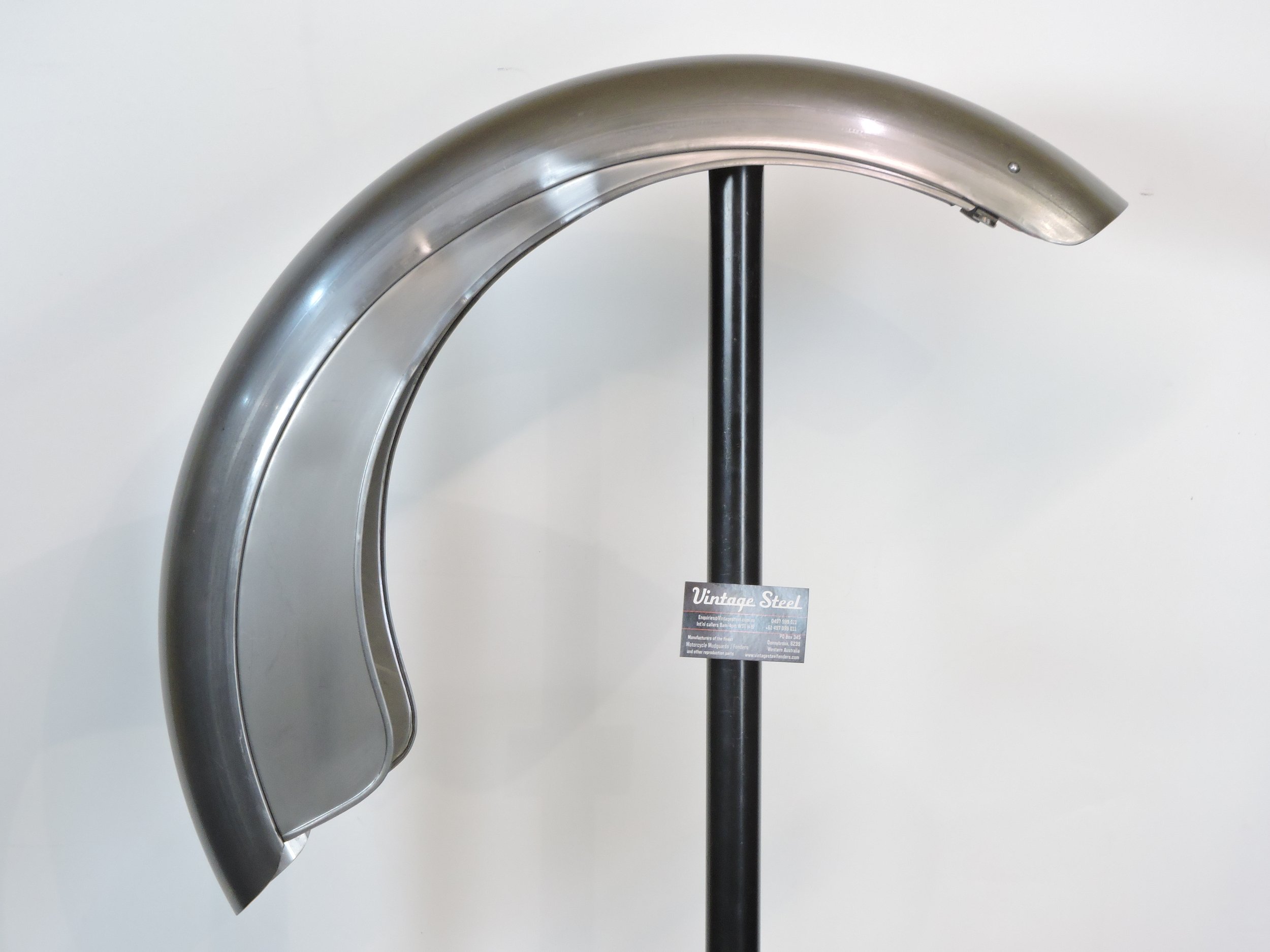

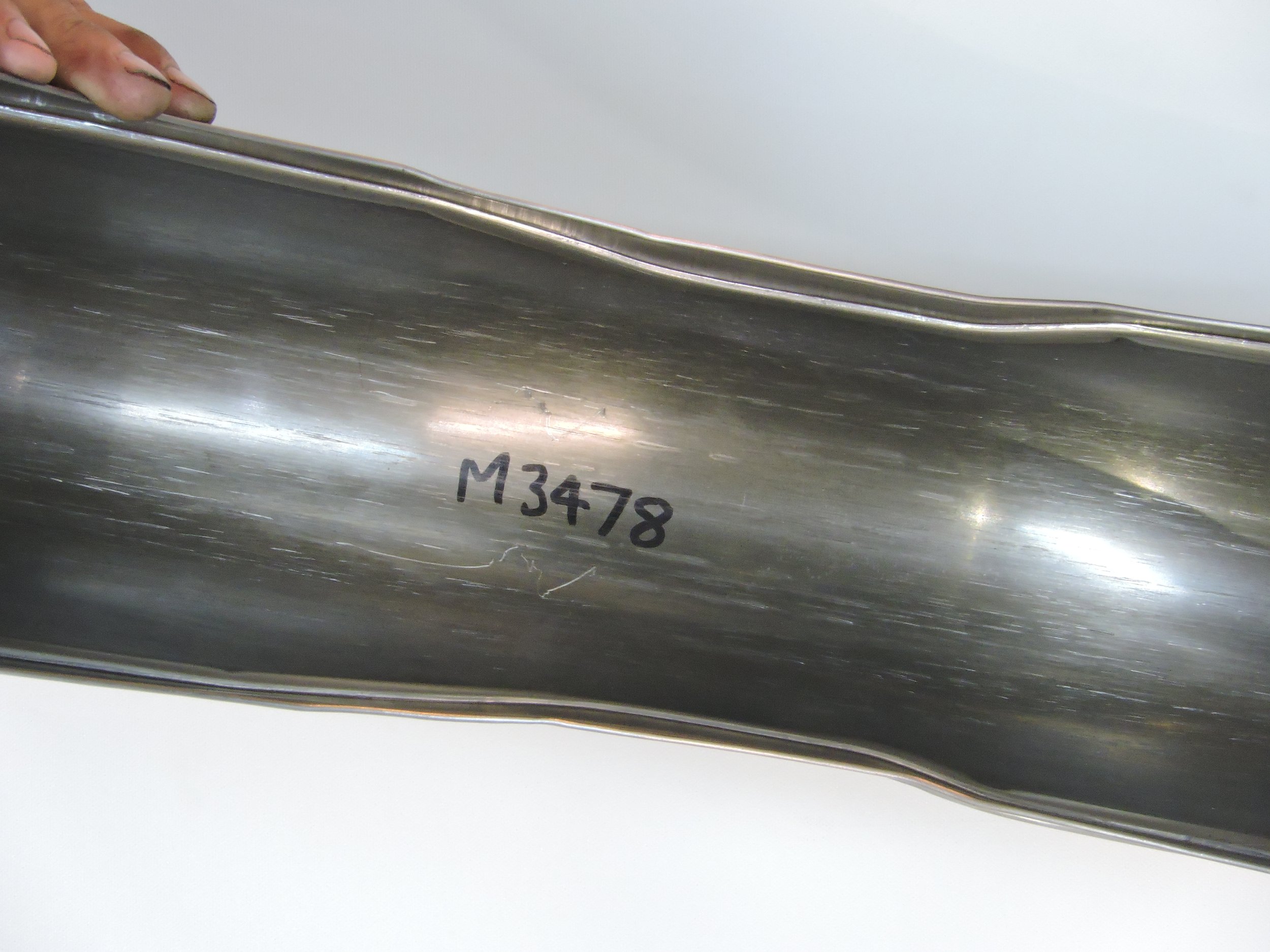

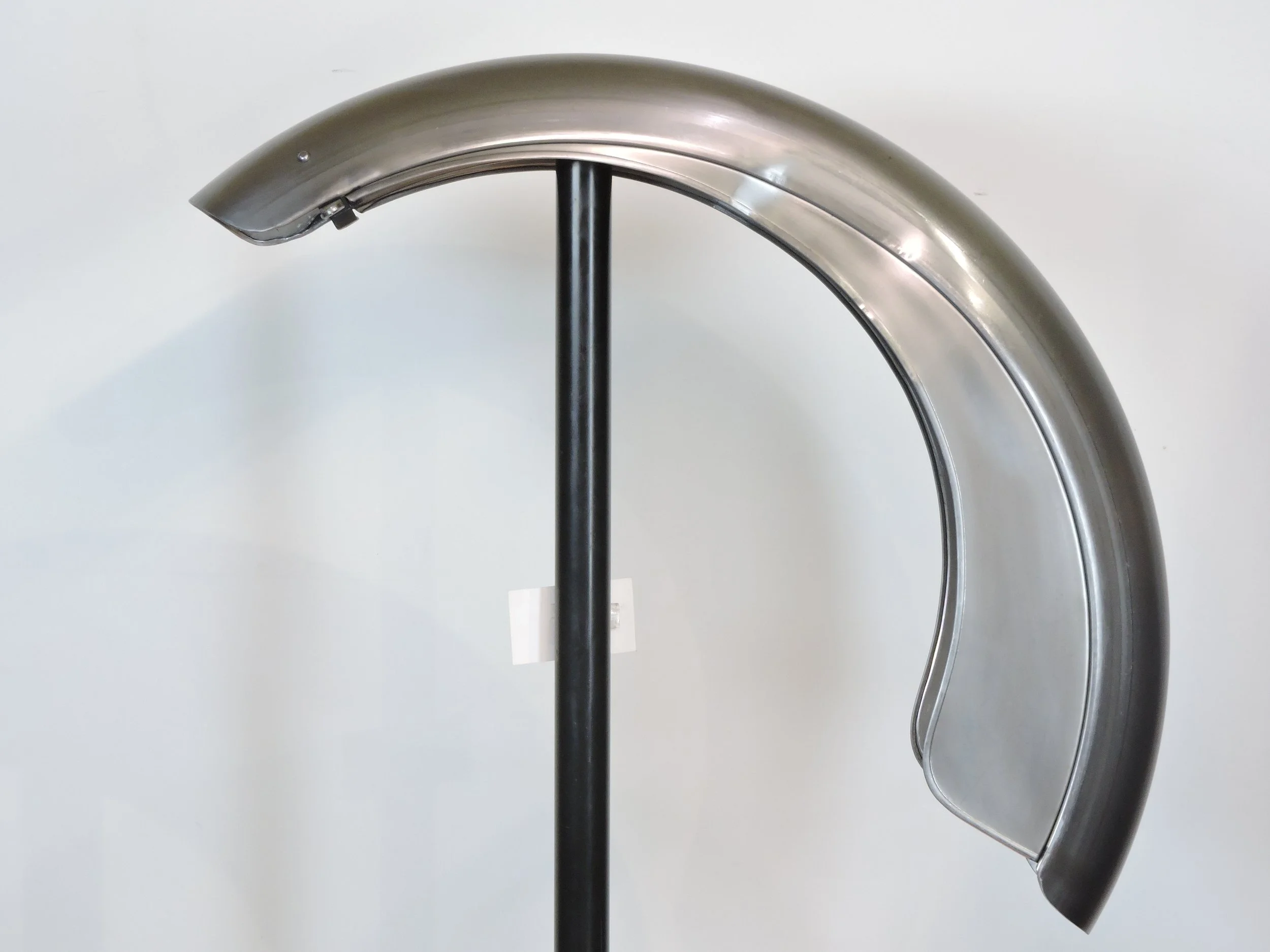

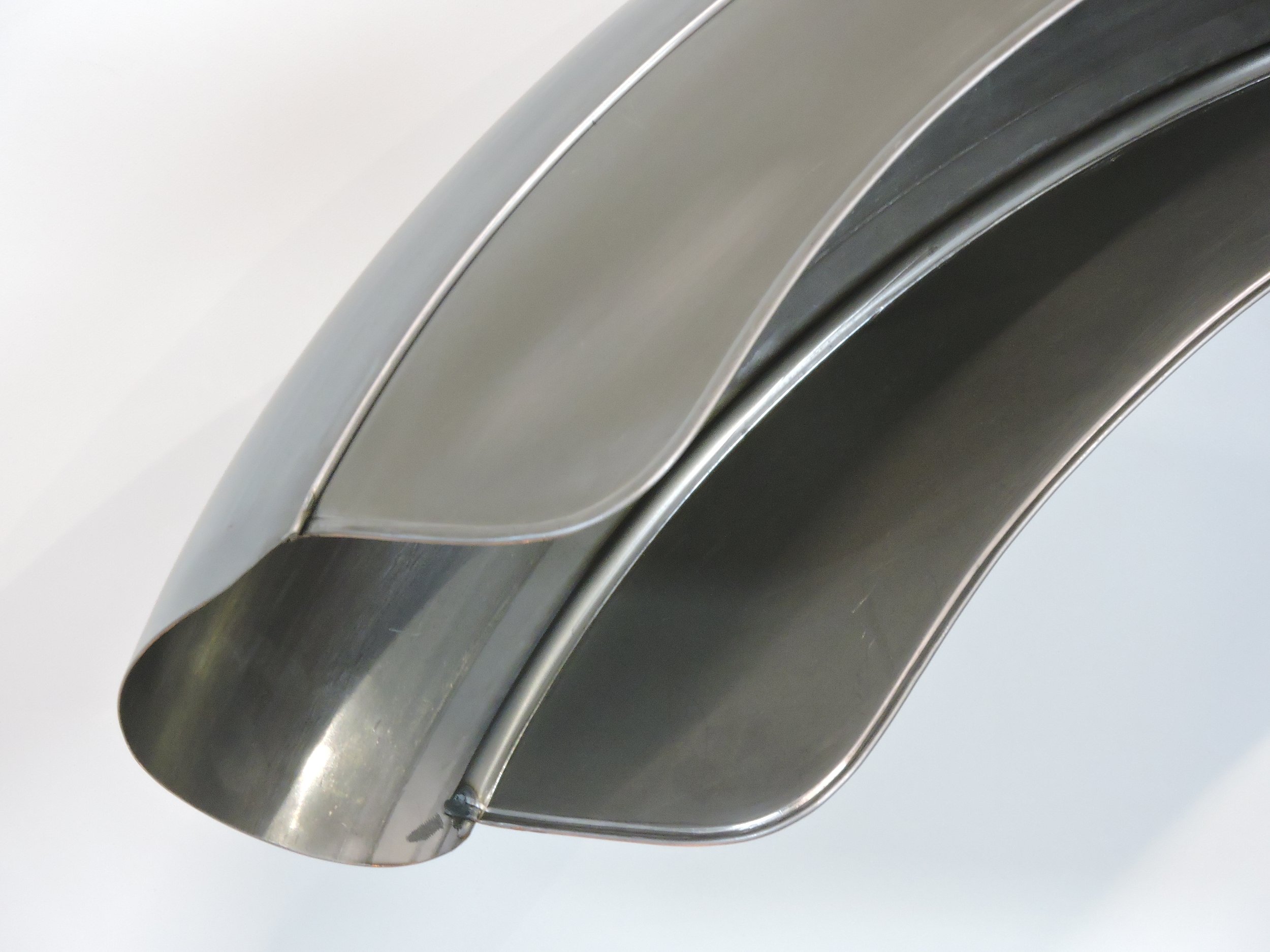

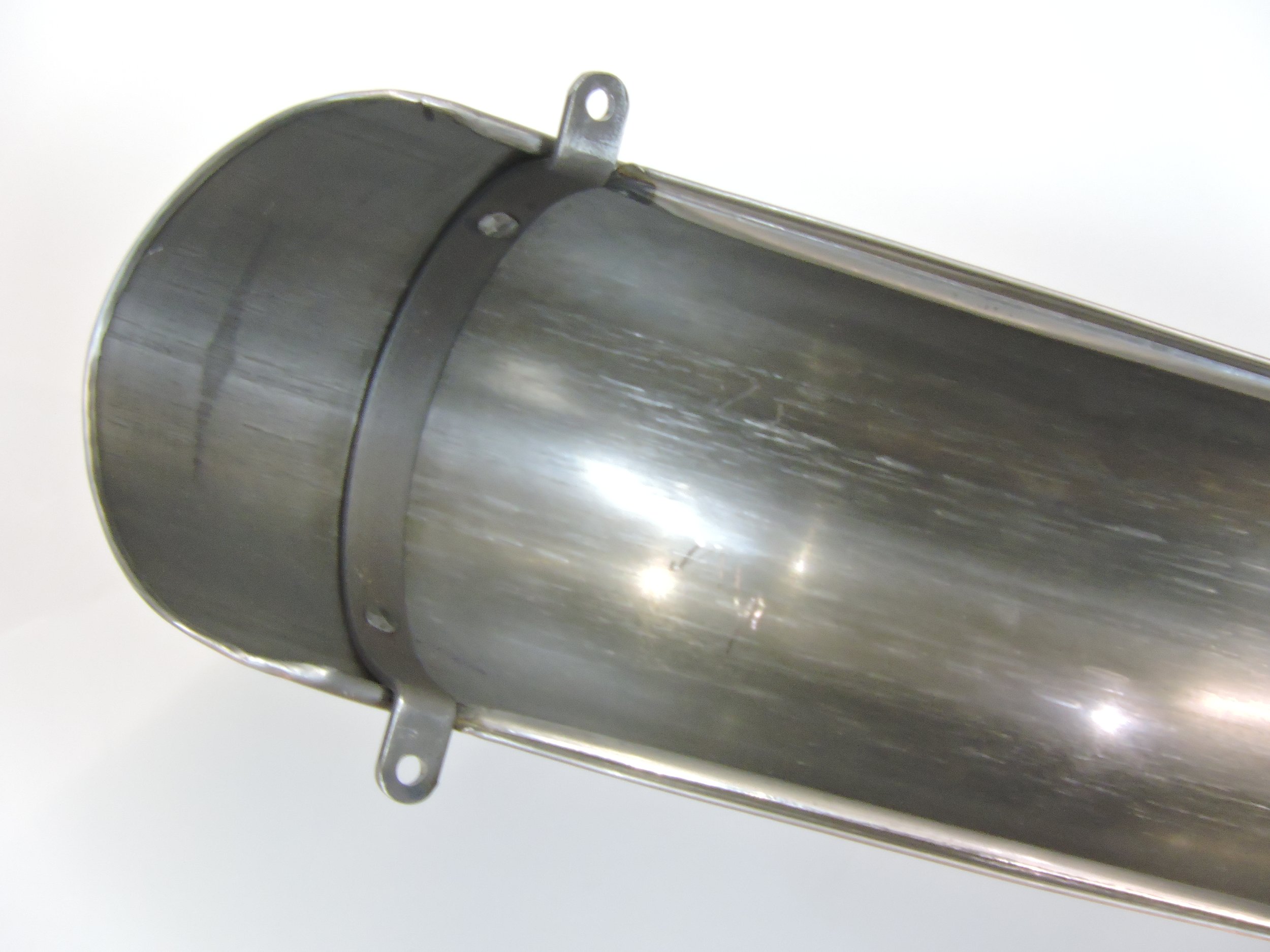

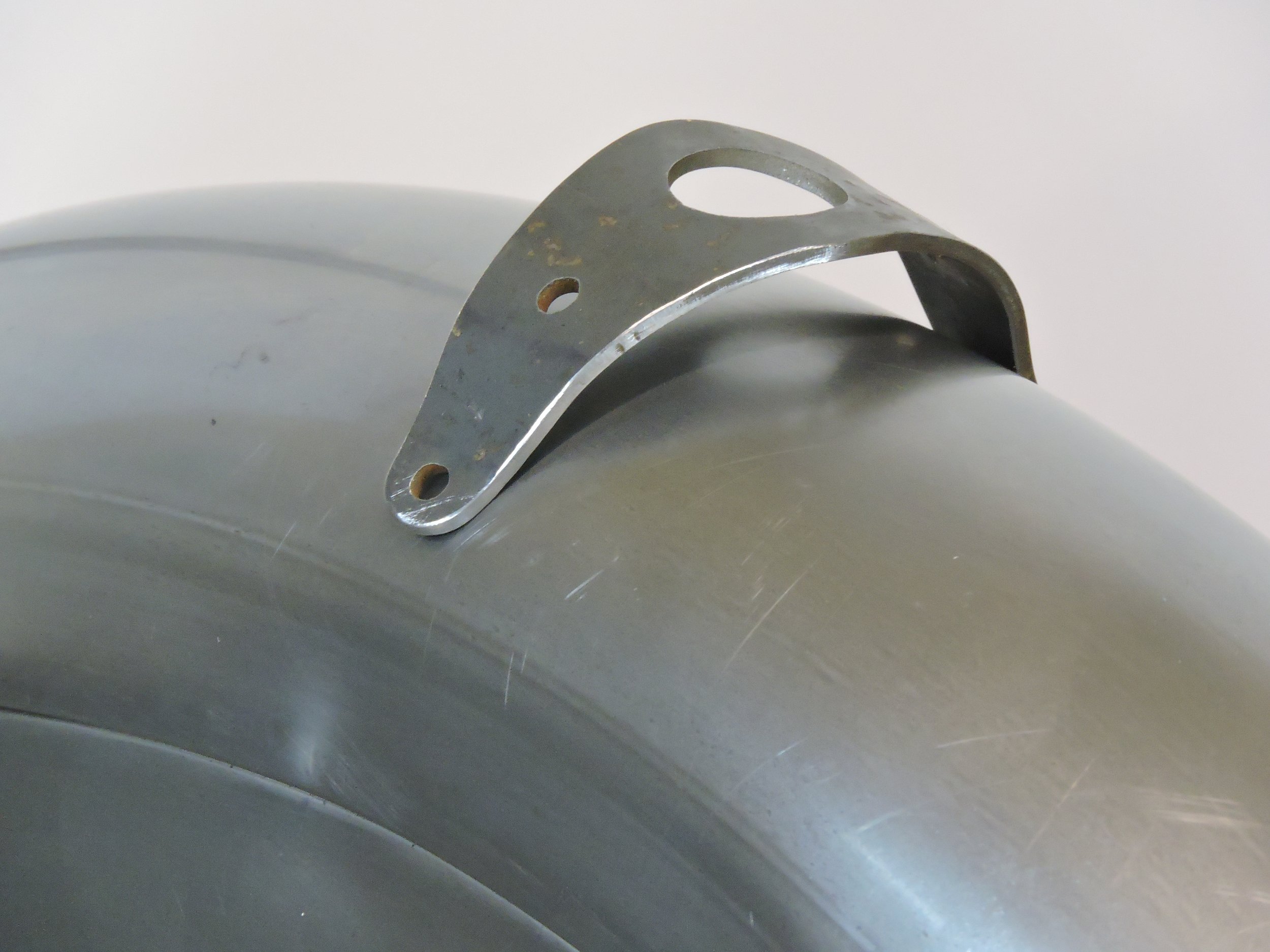

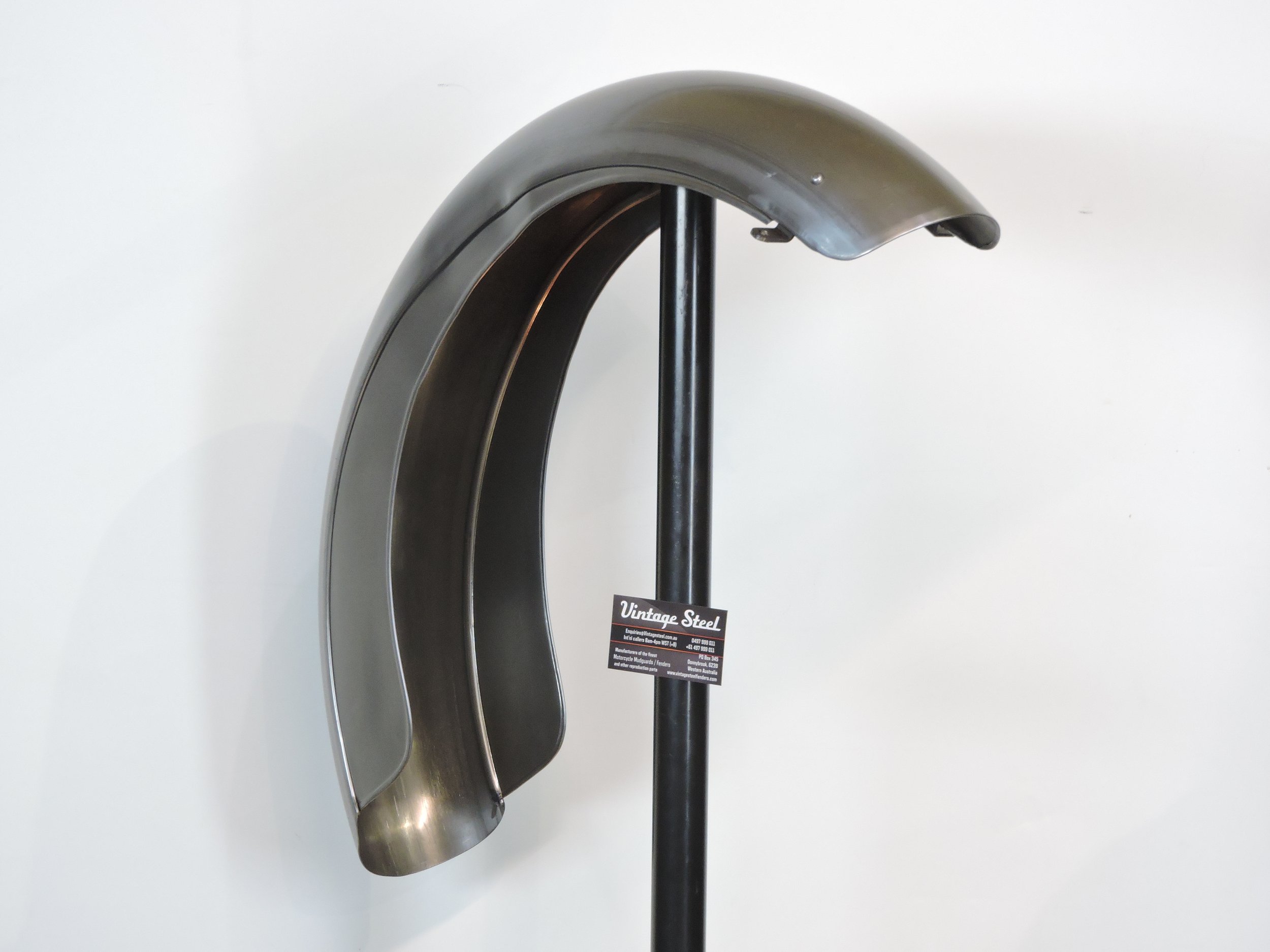

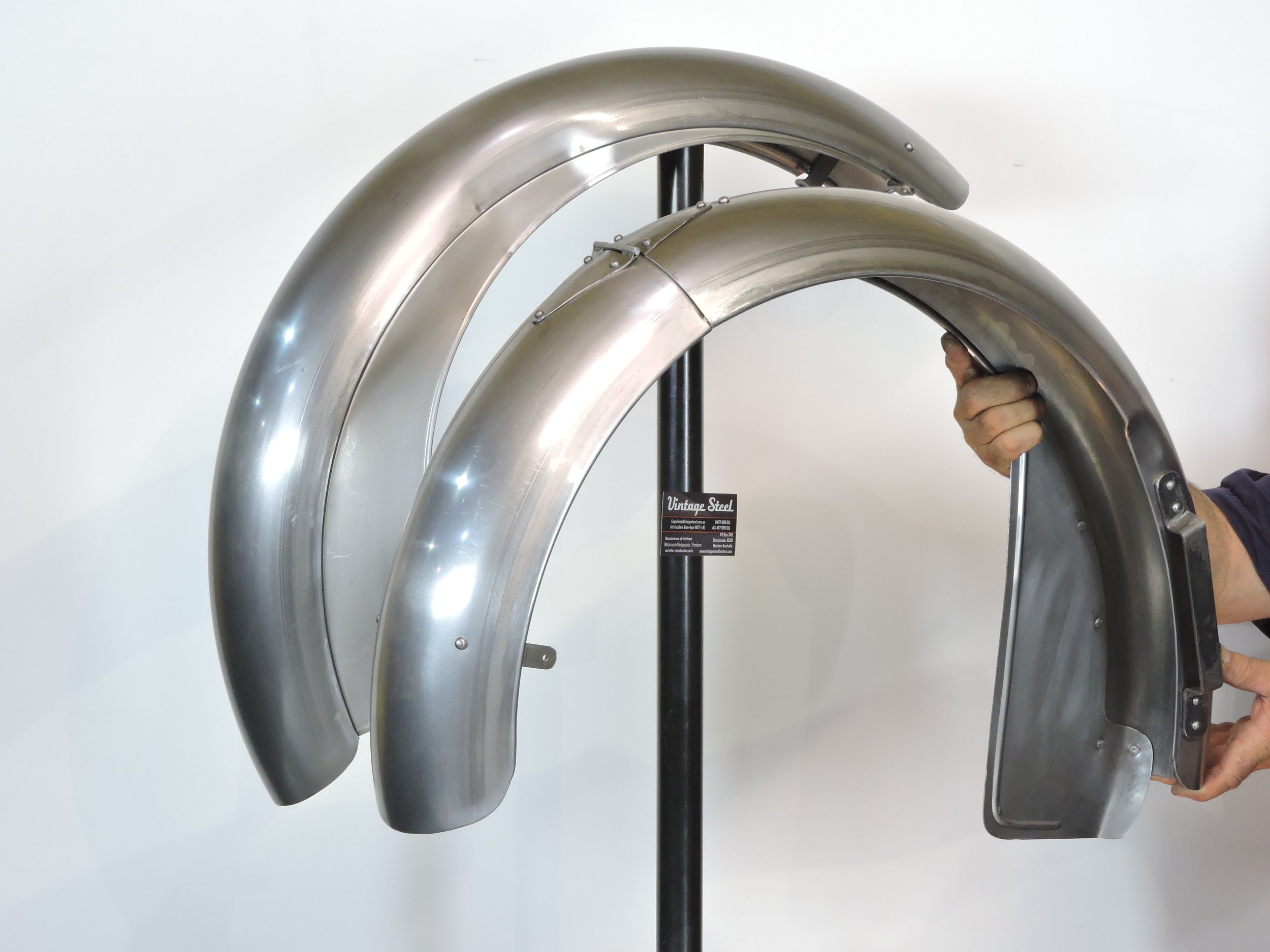

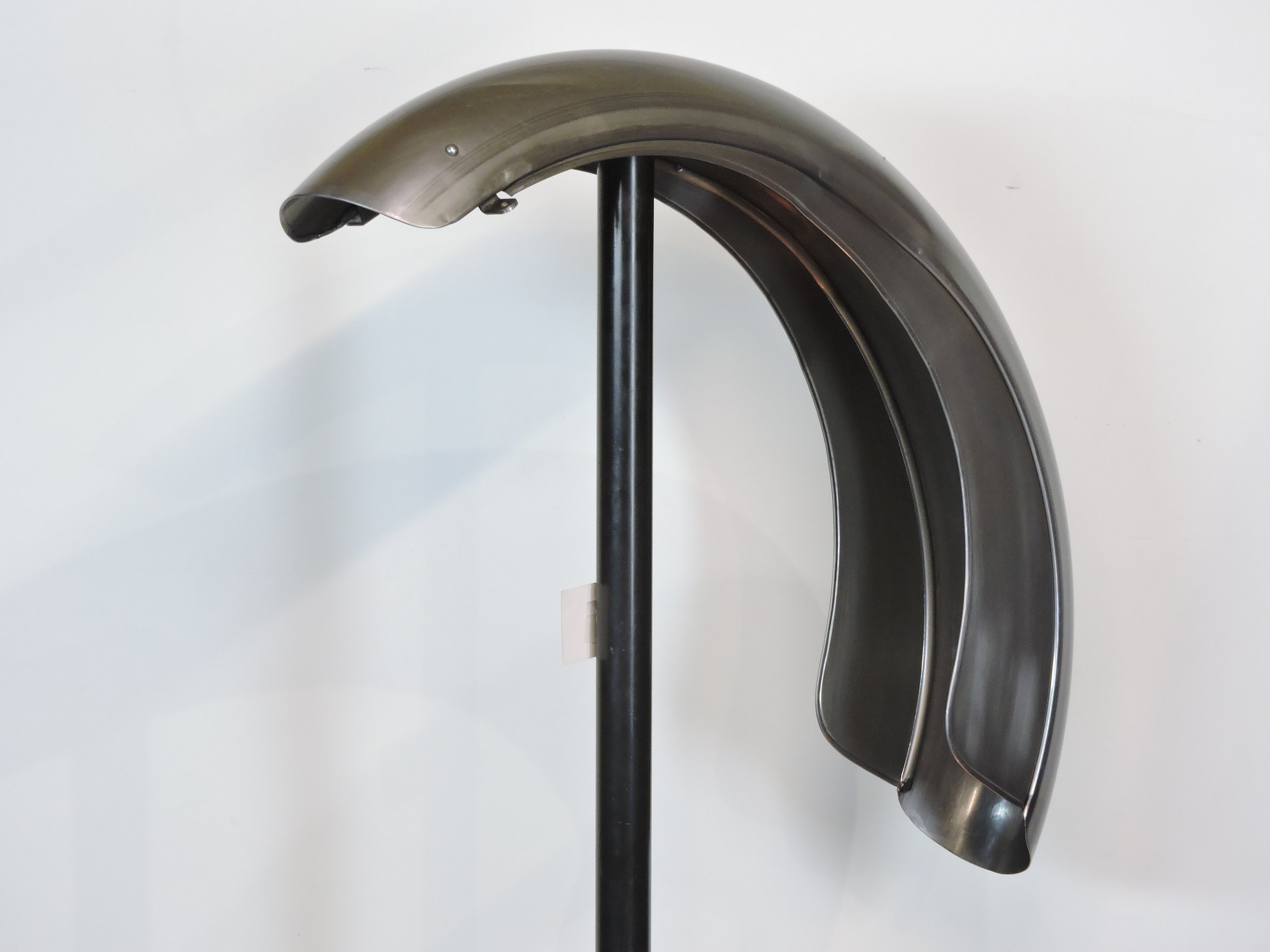

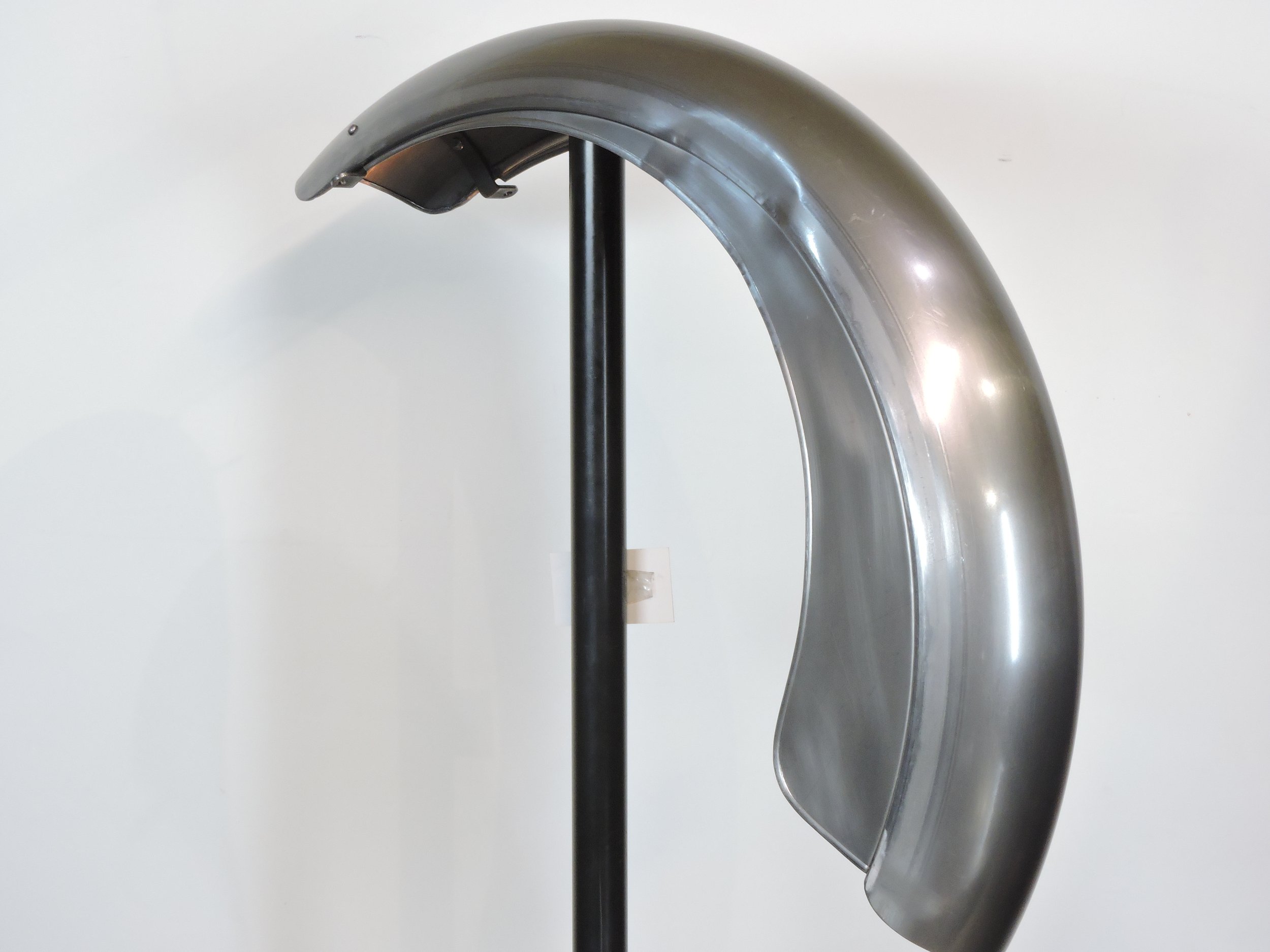

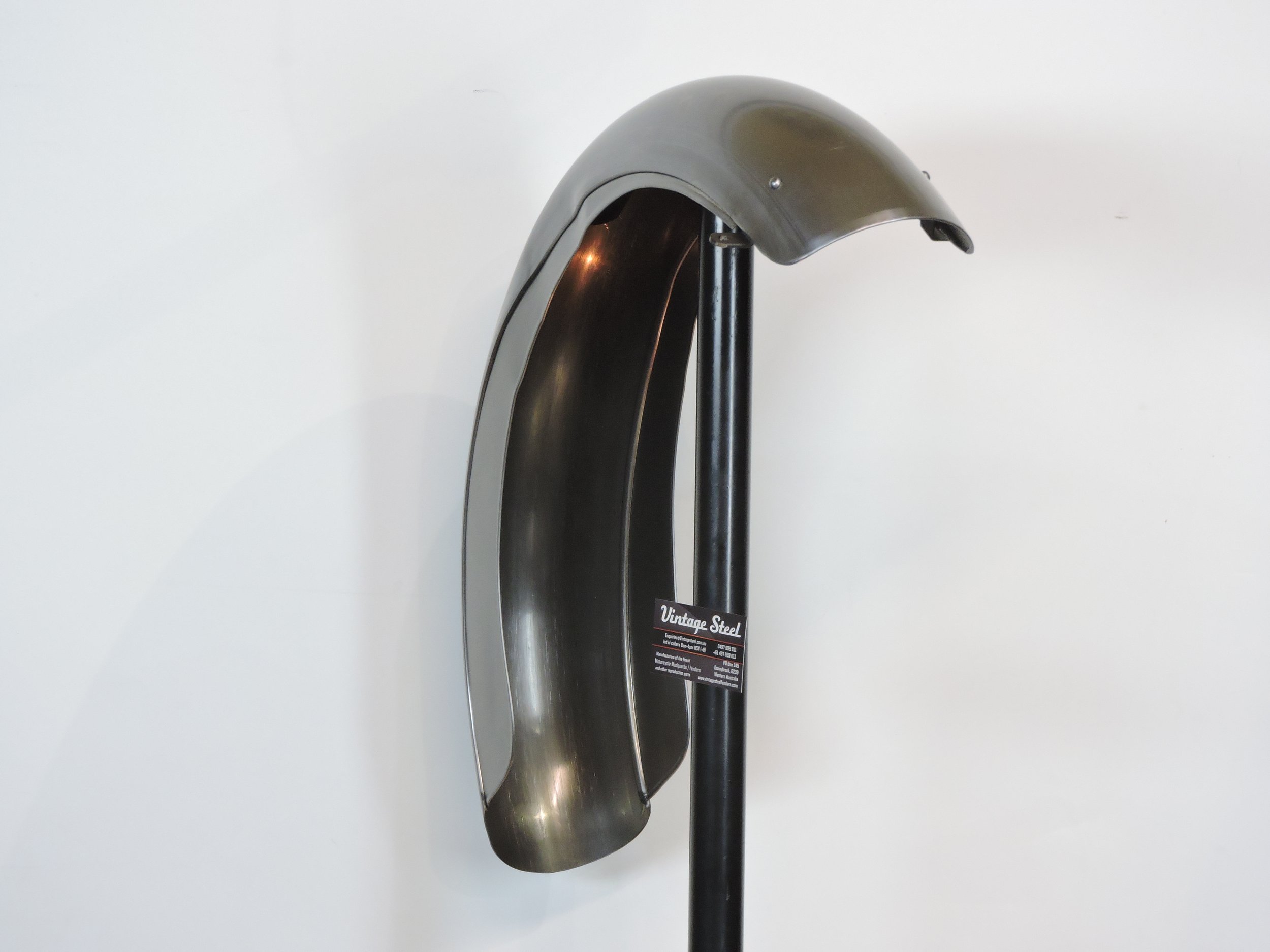

This Rudge front mudguard is made to Rudge factory drawing M3478 using the 142mm wide Rudge profile. There are pressings in the sides for fork clearance. Near full-length tapered valances are roll-swaged into the rolled edge of the guard and include a Rudge pattern rolled safety edge. There is also a riveted bracket in the nose end for rod stays and the tip of the nose end is folded under as a safety edge. The centre fork mounting bracket is supplied loose for bolting,
Price as pictured is AU$1133 #31RUDFF-8W
