Triumph 6" Rear 1948-on #48-1
/ Michael RockTriumph Rear mudguard / fender by Vintage Steel

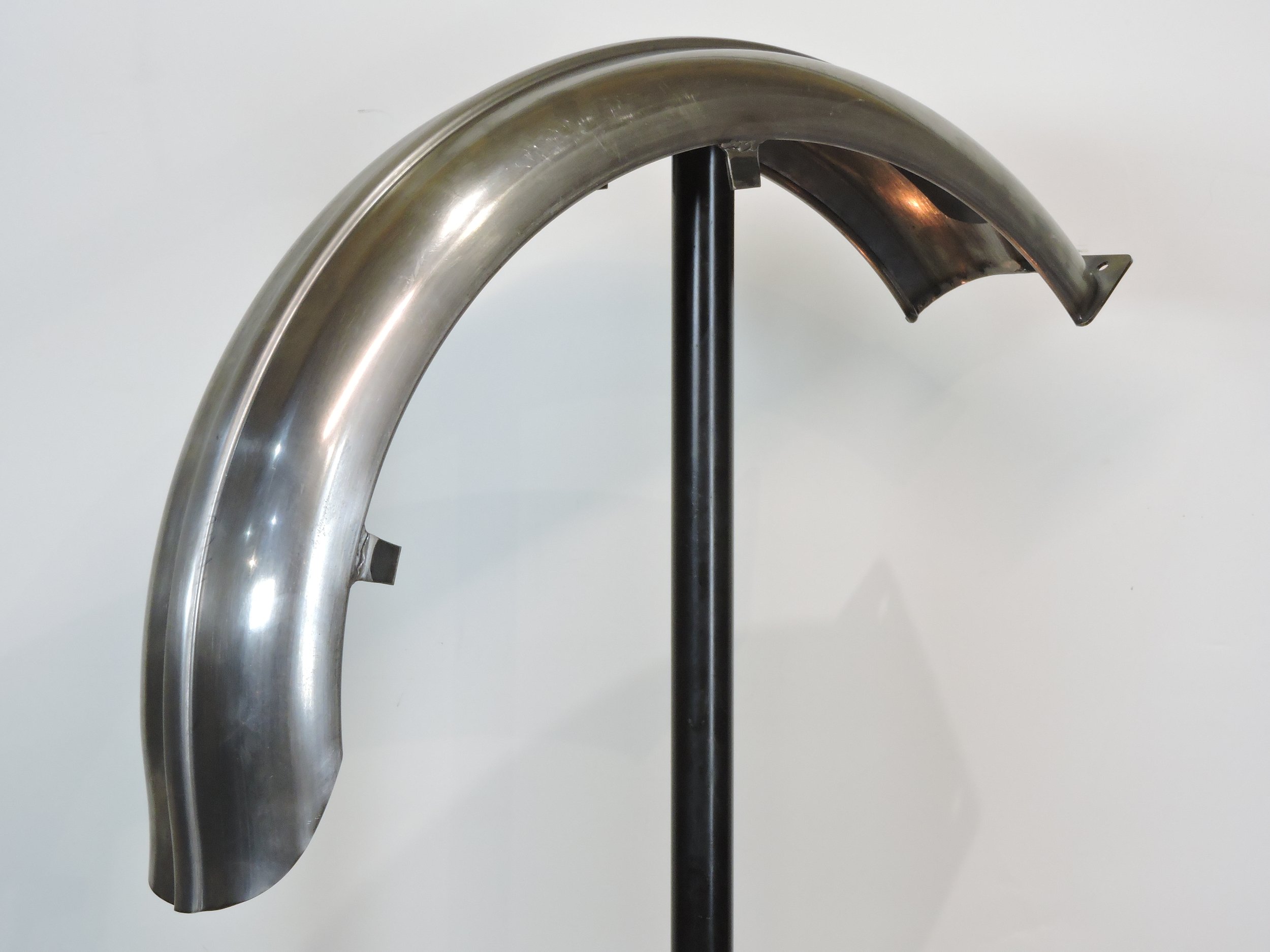

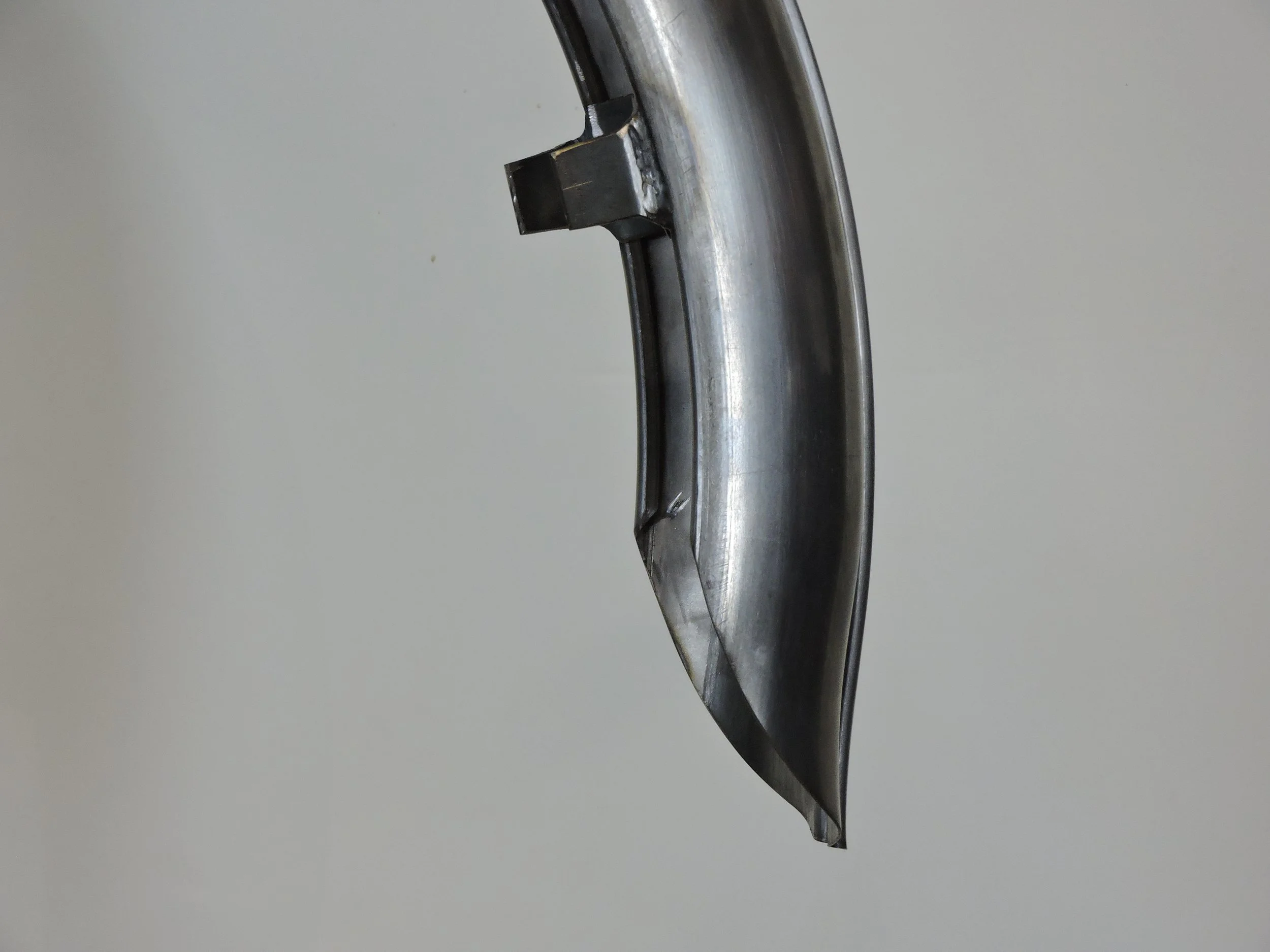

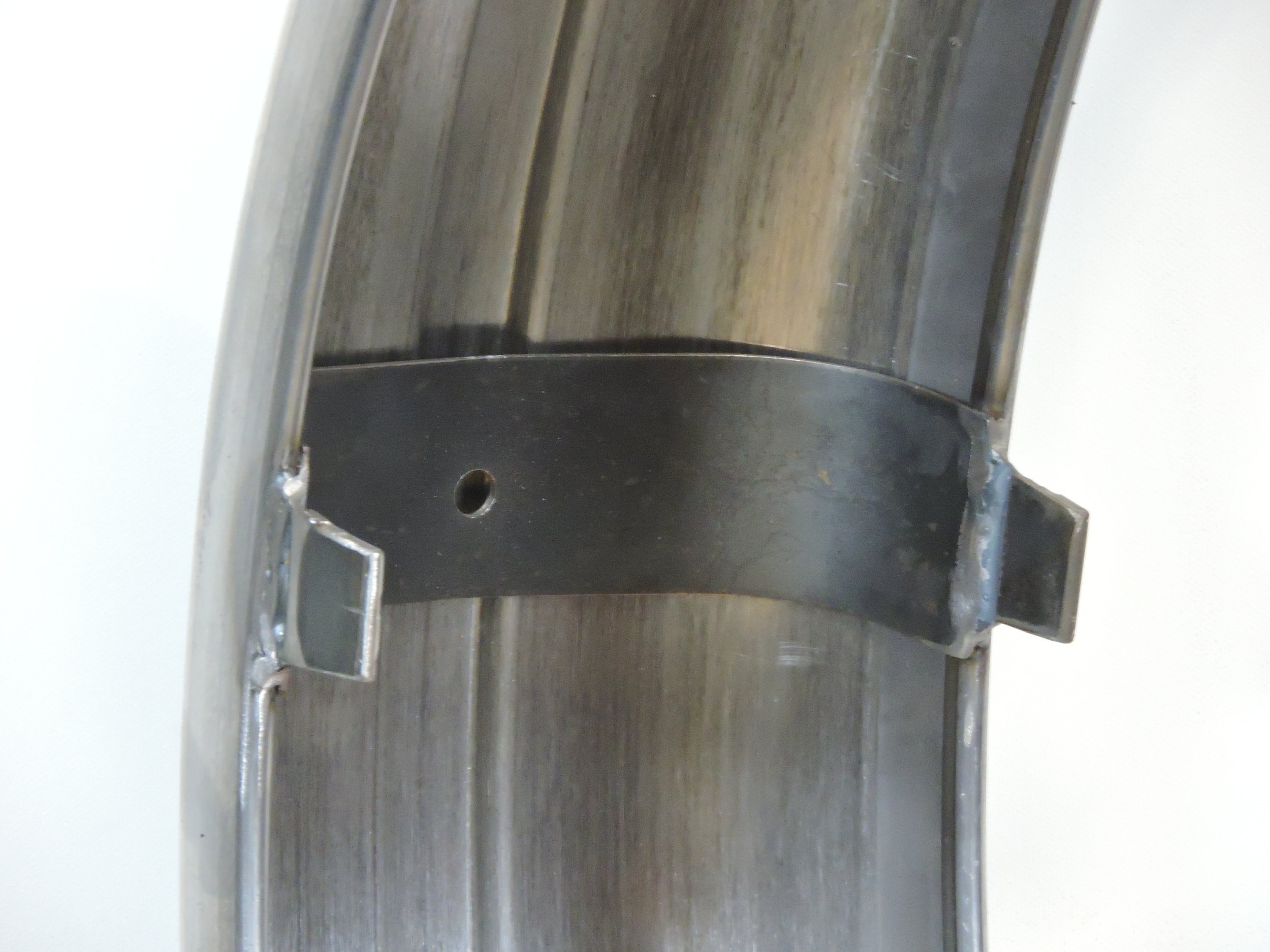

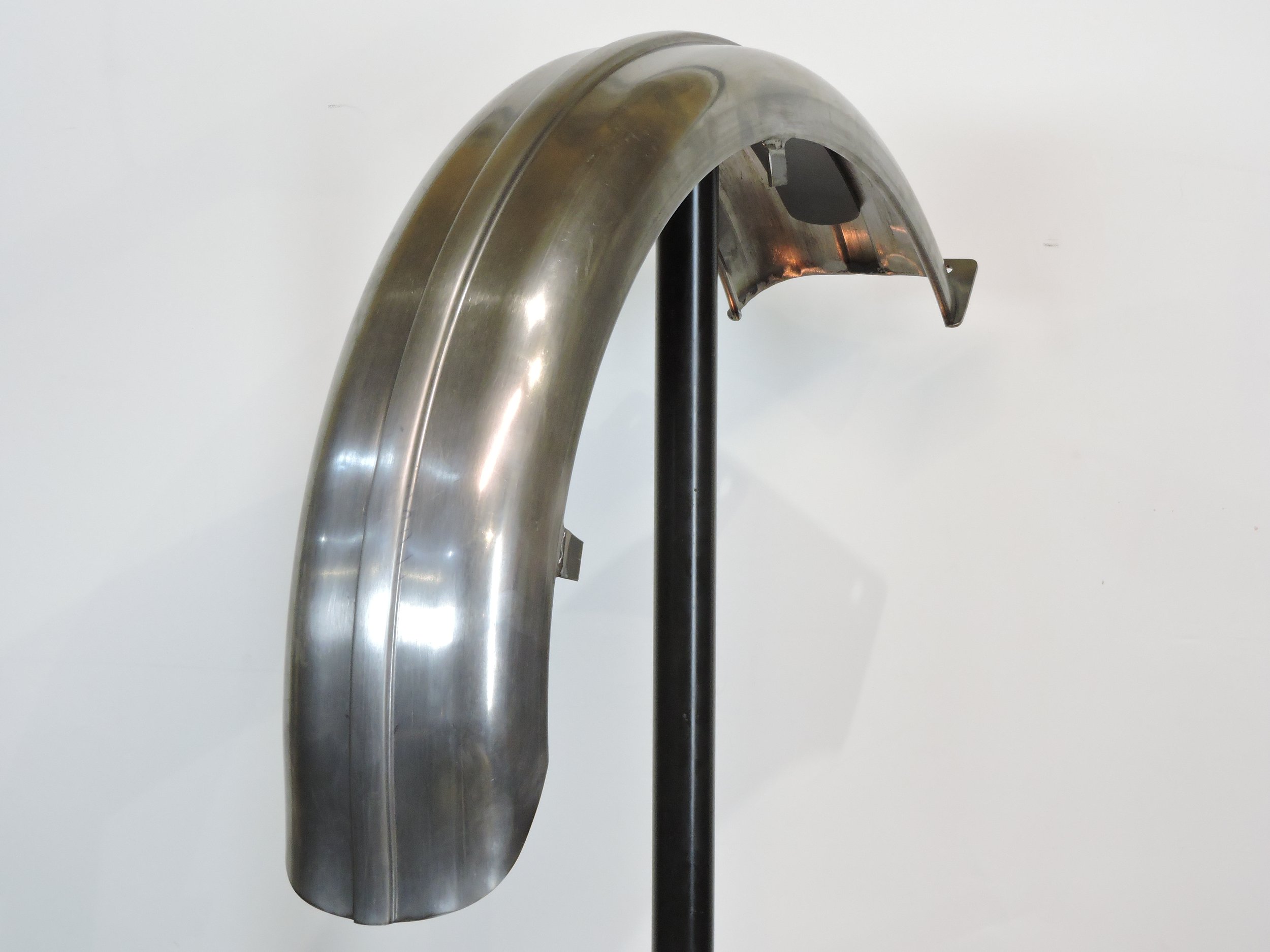

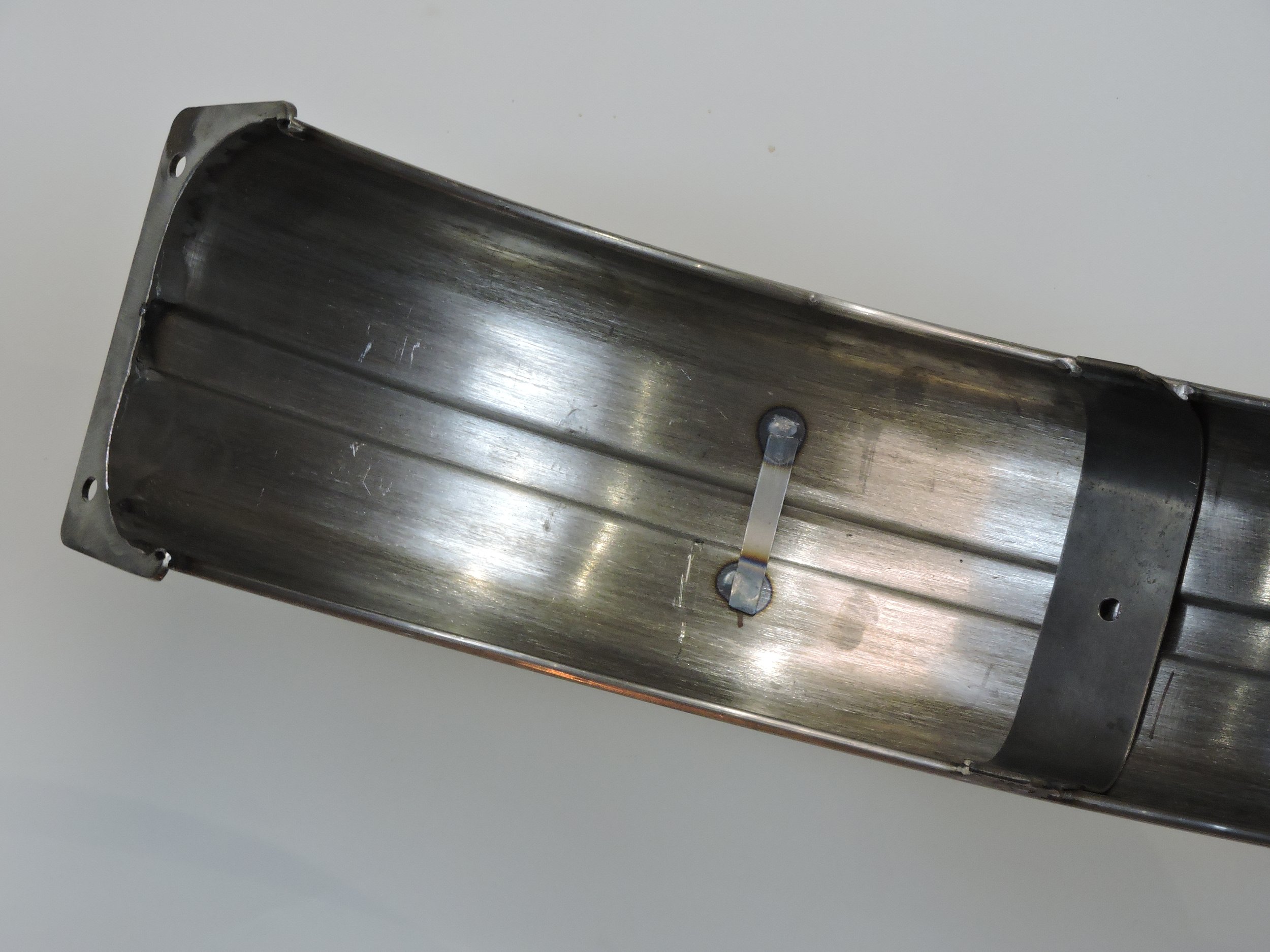

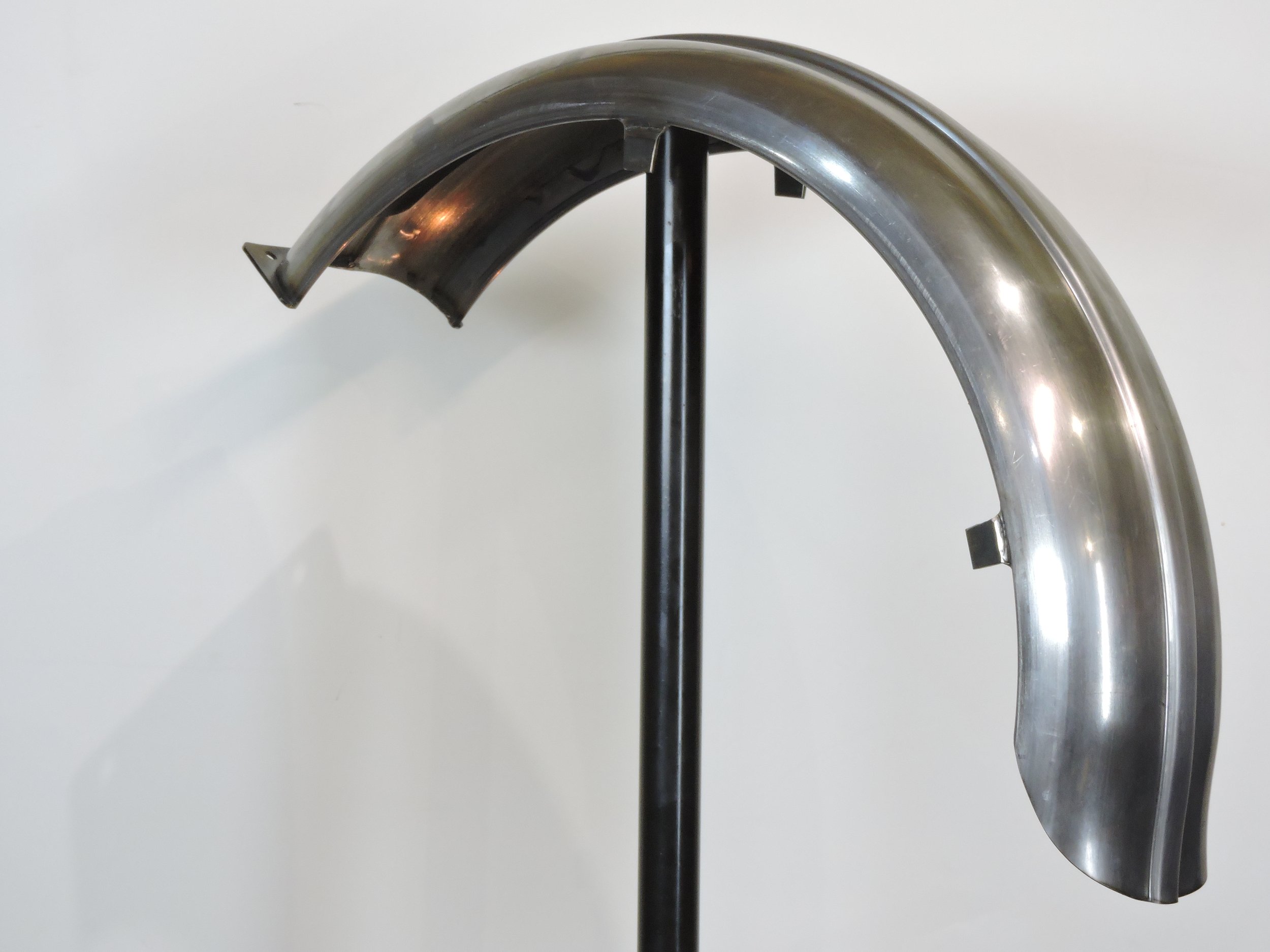

1948 saw the cross piece in Triumph rigid frames change to allow the 2-piece rear mudguard to join under the seat. These 6” wide deep D section guards with 7/8” centre rib were standard on the rear of most models. The nose end of this guard has a chainguard clearance pressing in the drive side and a welded flange for the join (somehow this piece missed being photographed). The tail piece with a duck-tailed rear end also has a matching welded flange at the join and two welded mounting brackets on the inside. Valanced versions are also available.
Price as pictured (with nose piece) AU$1361 #48TRIRF-1
Please talk with us HERE about your requirements
