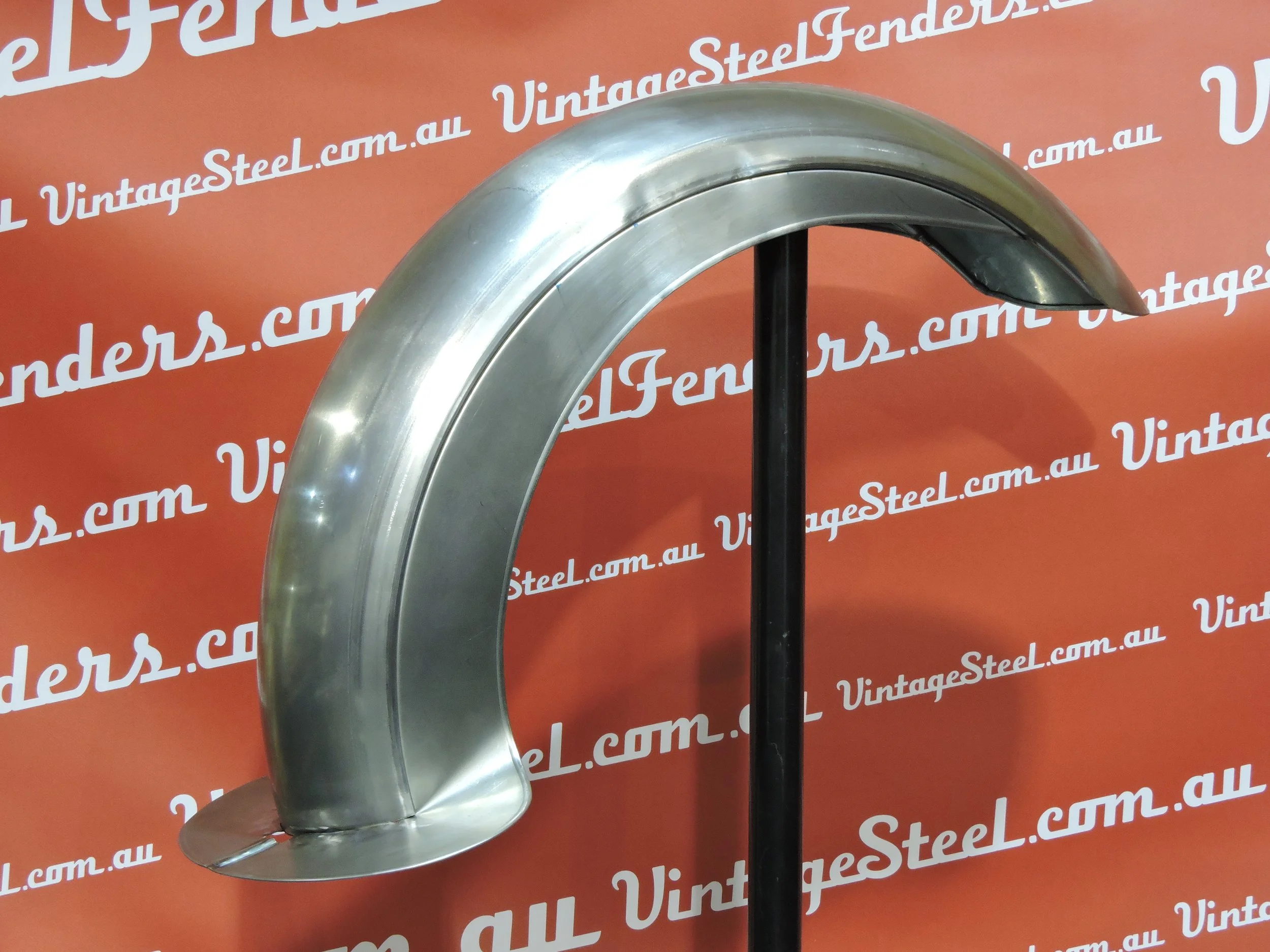

Rudge 1932 Special Front #31-10W

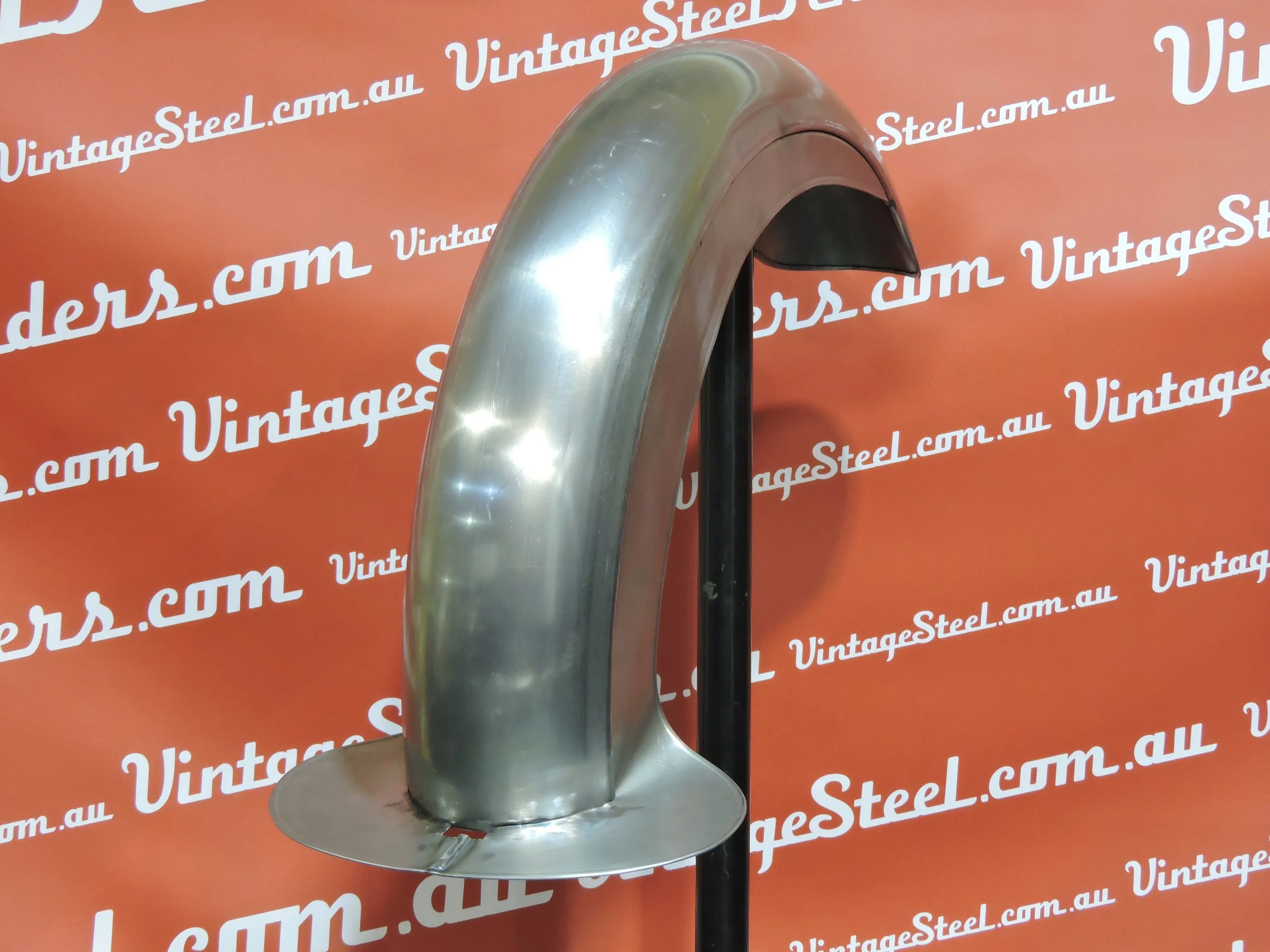

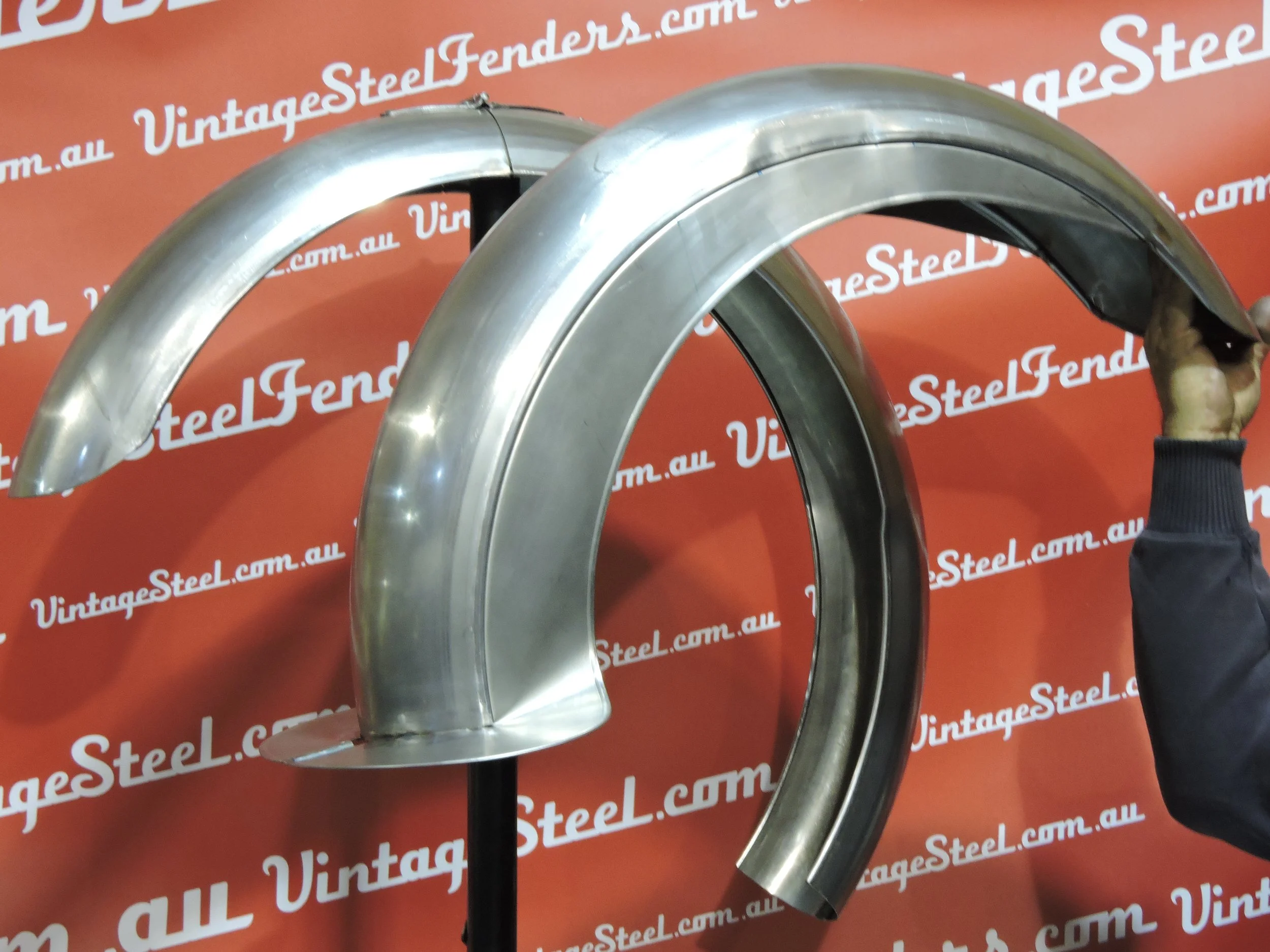

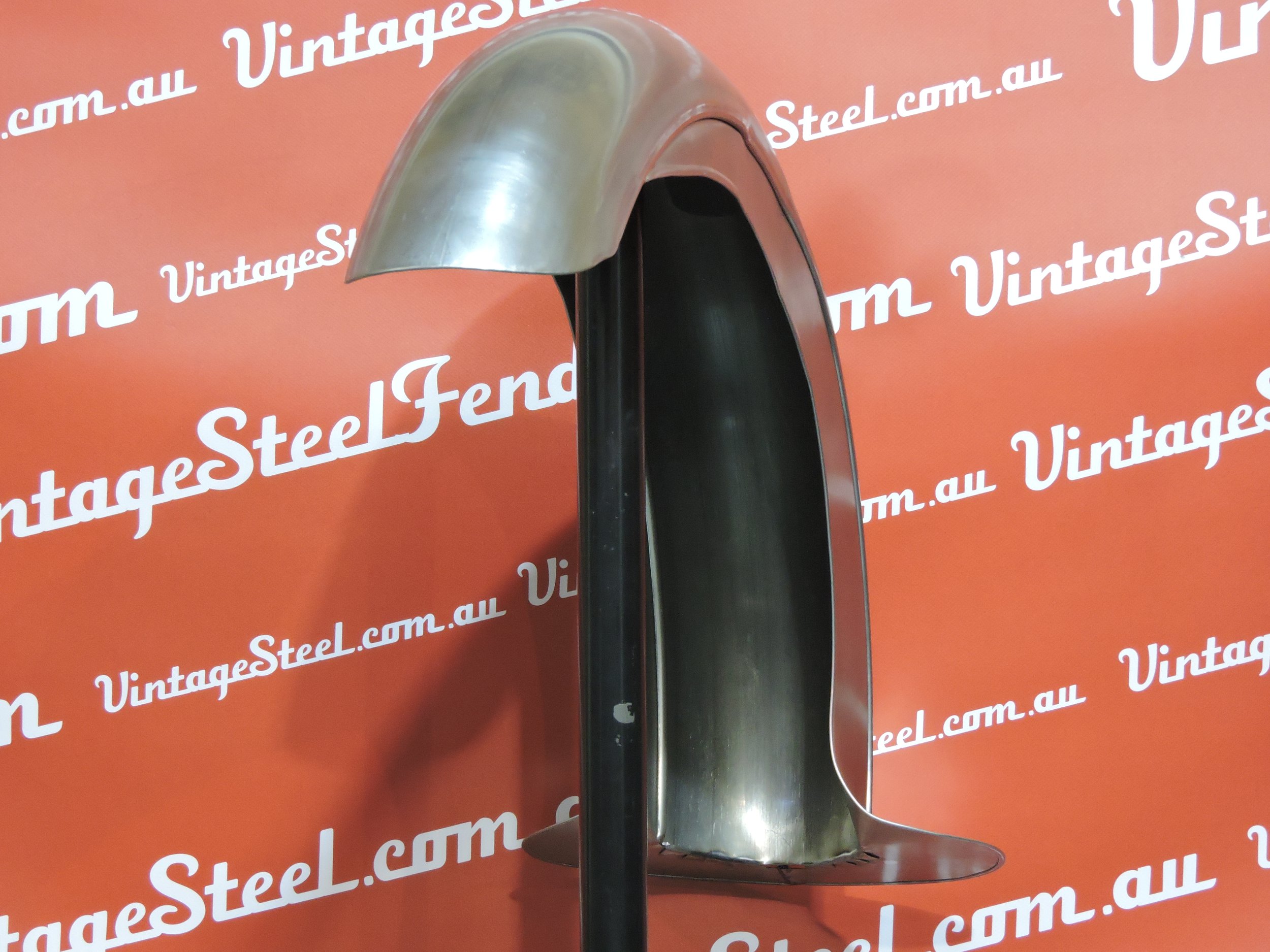

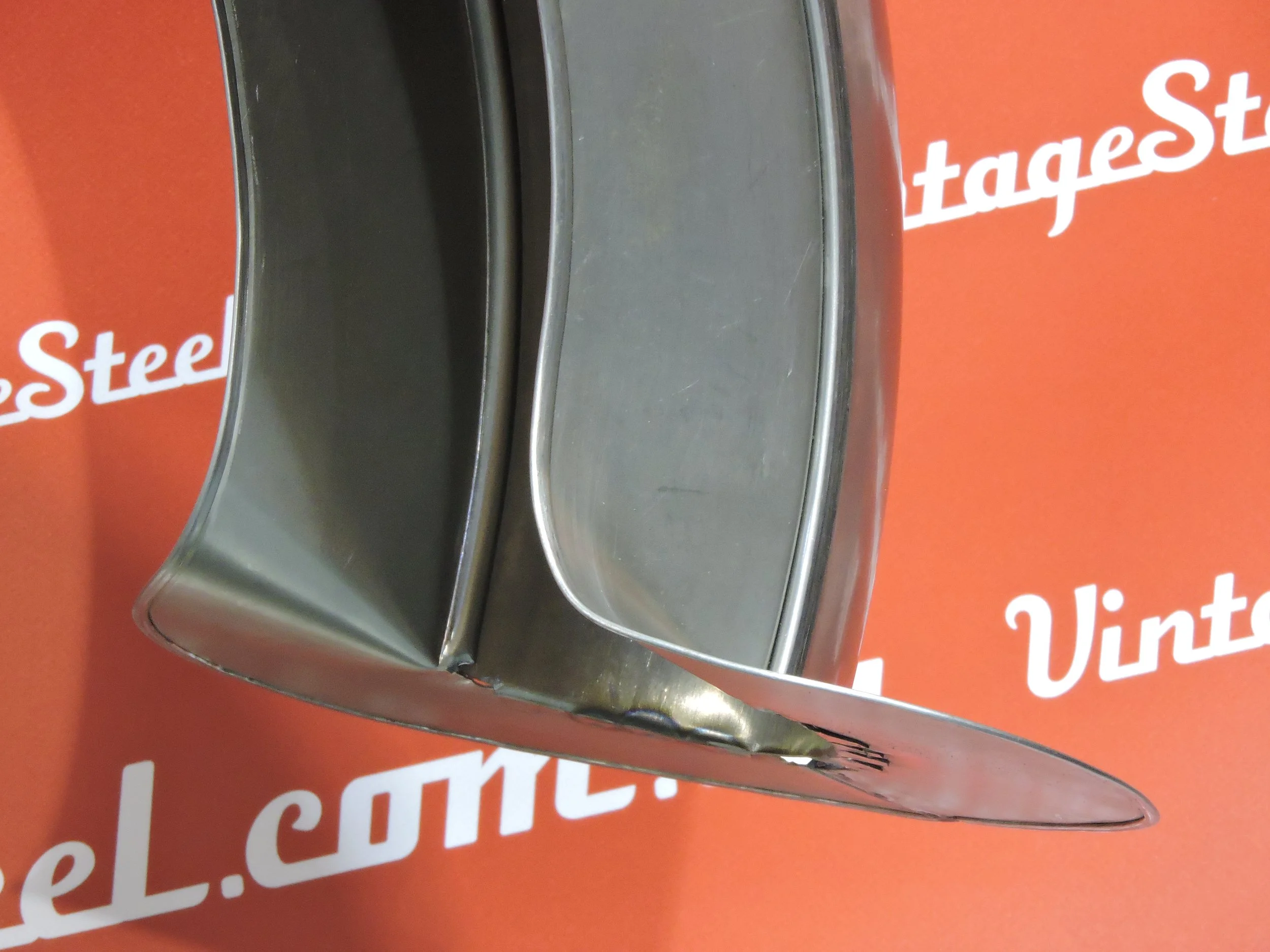

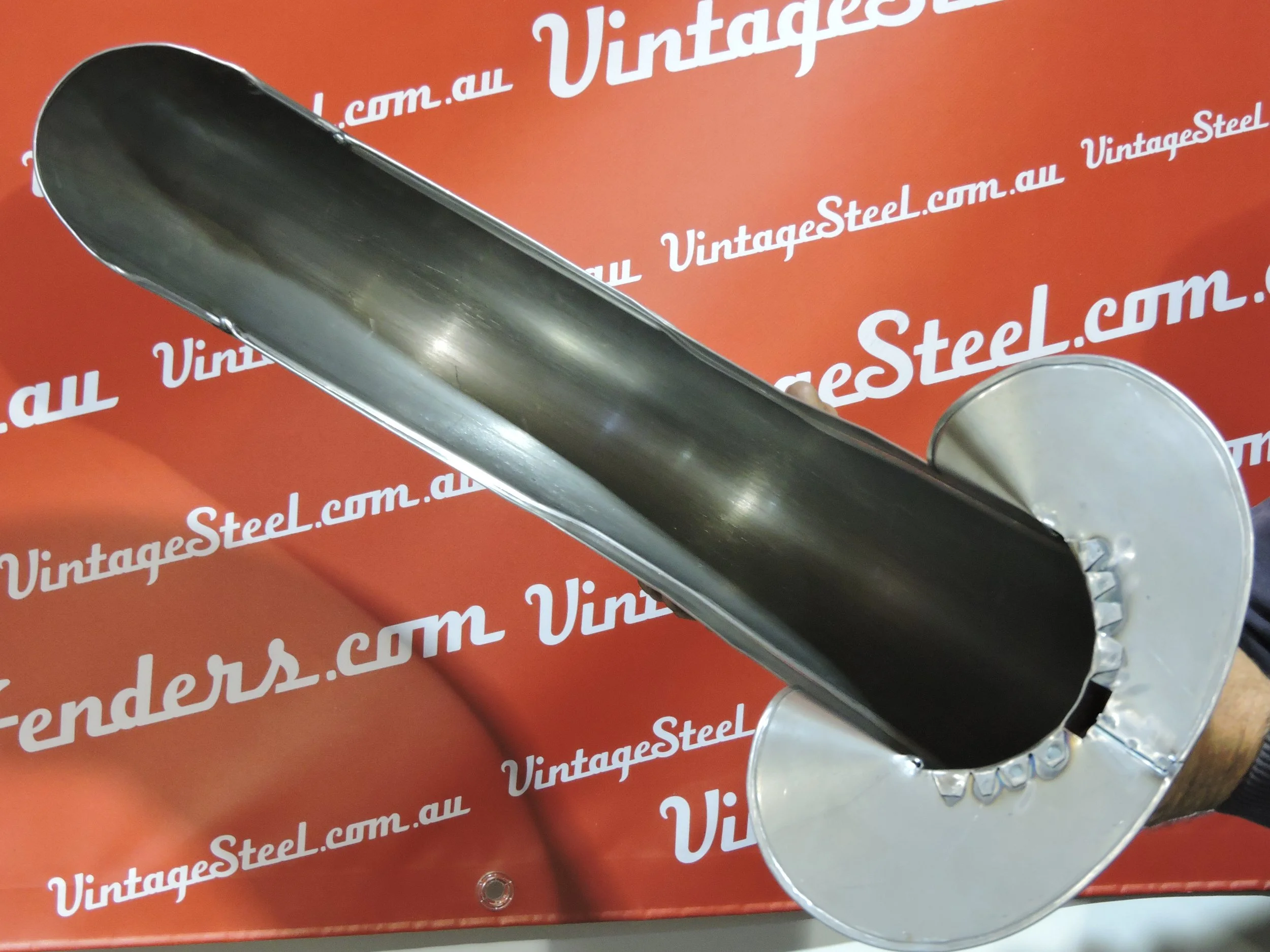

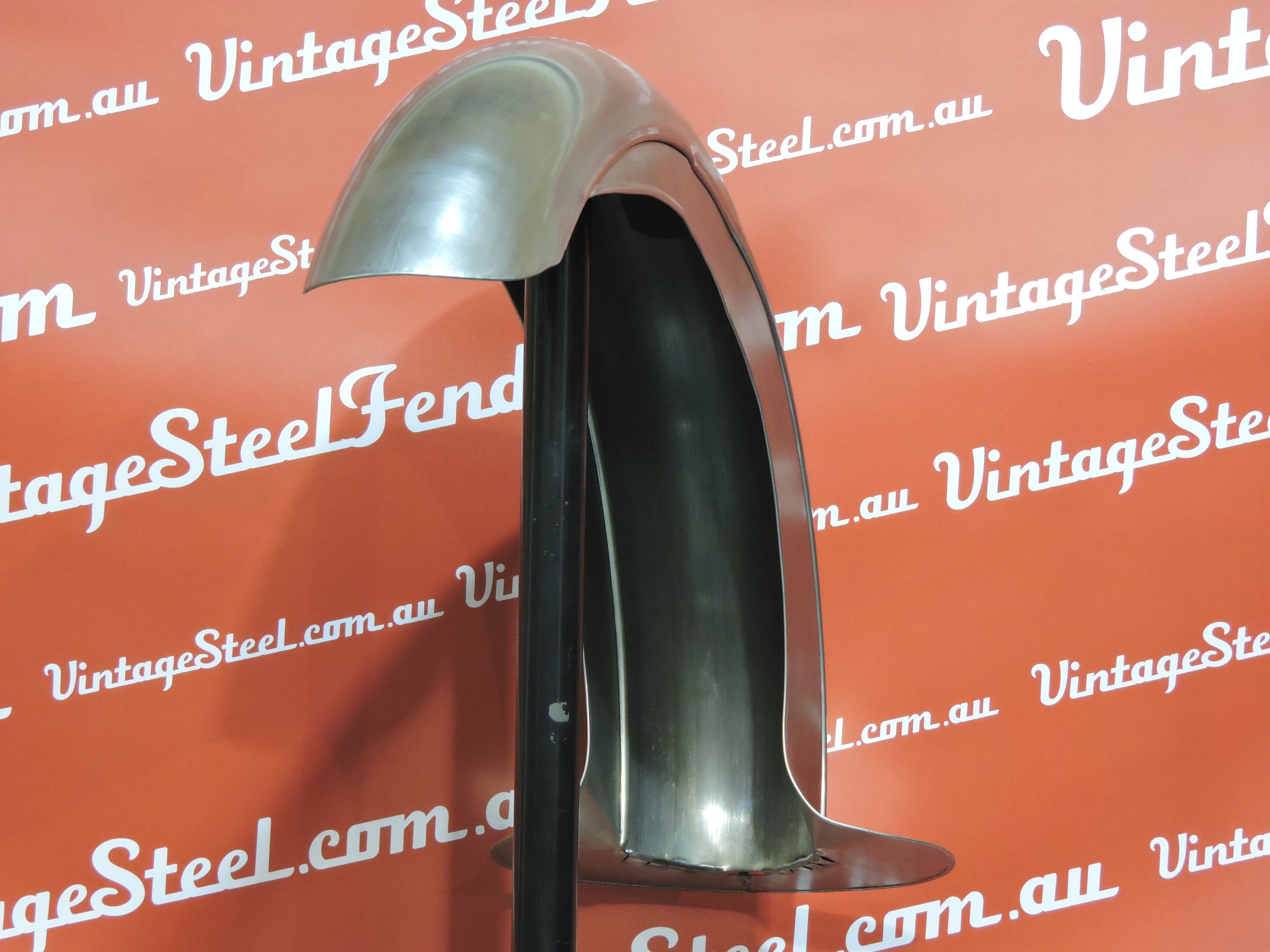

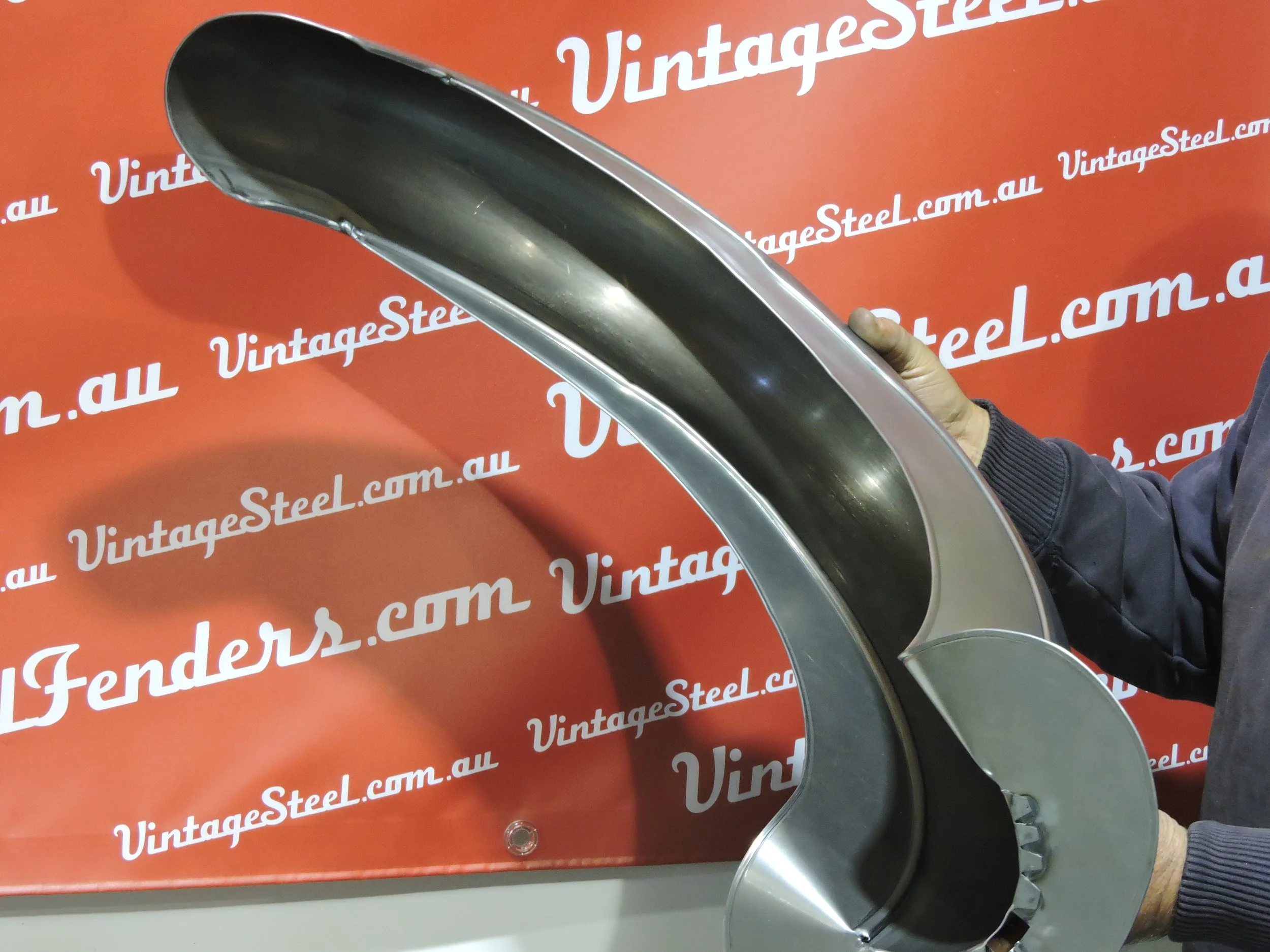

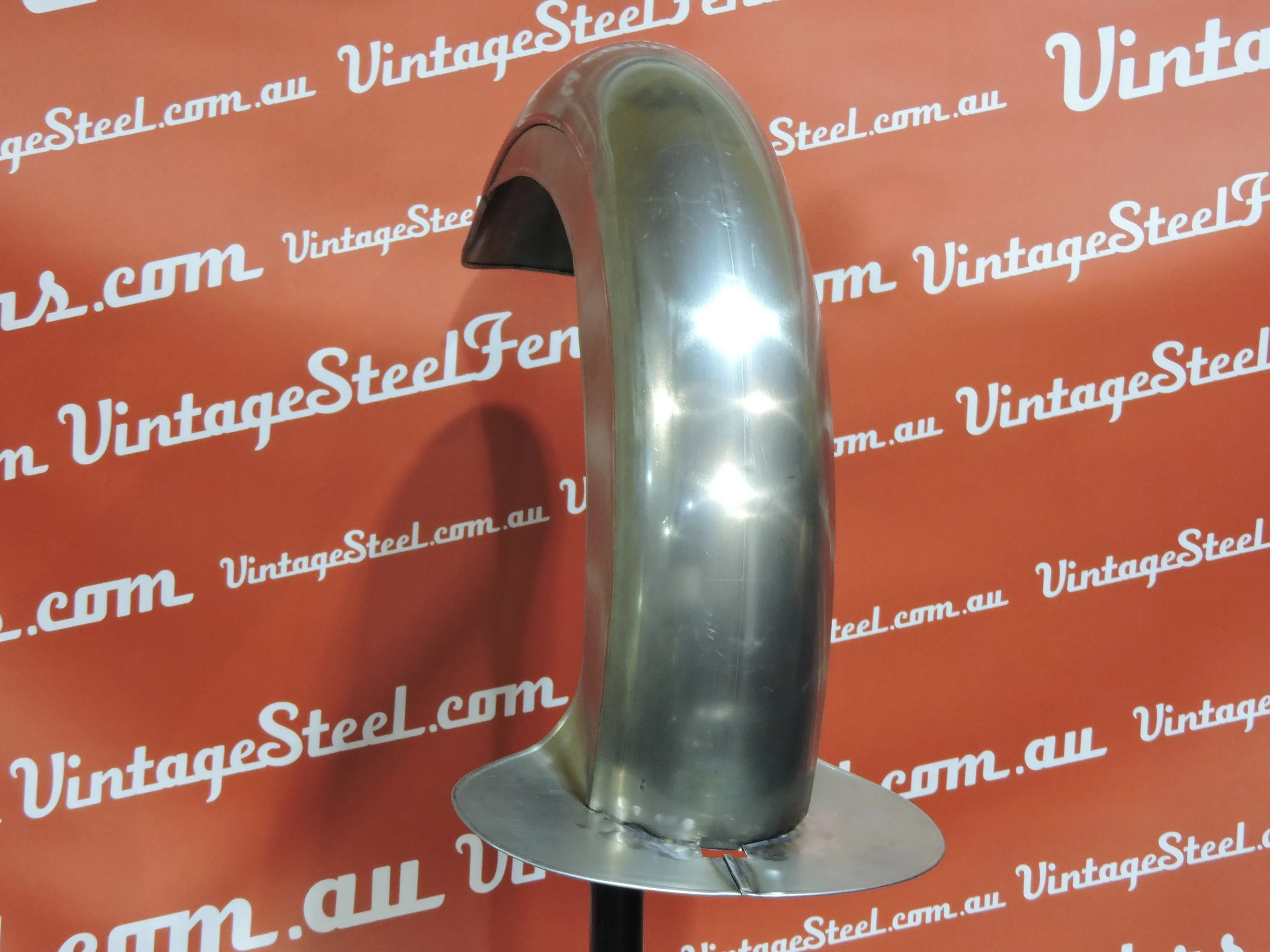

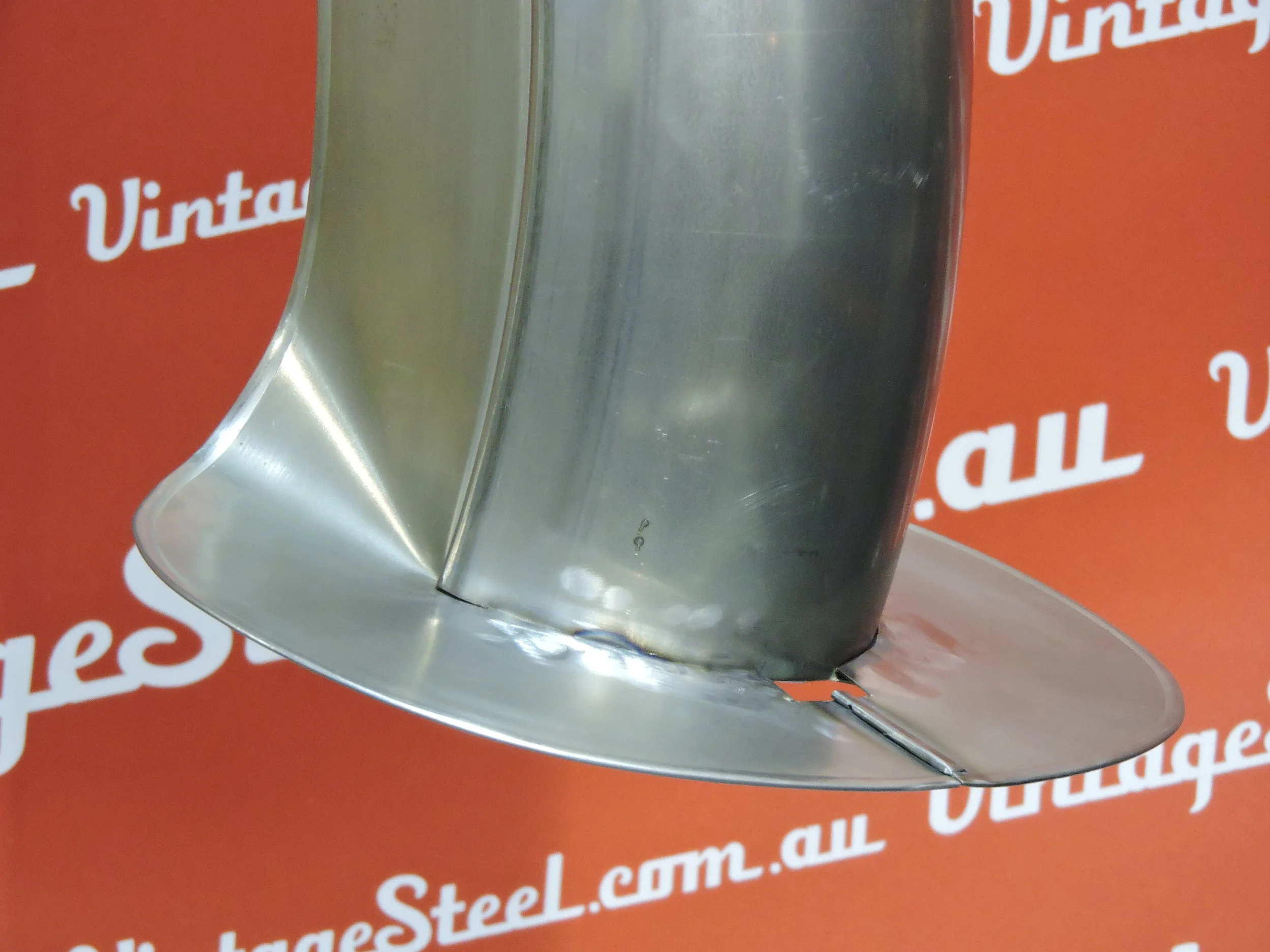

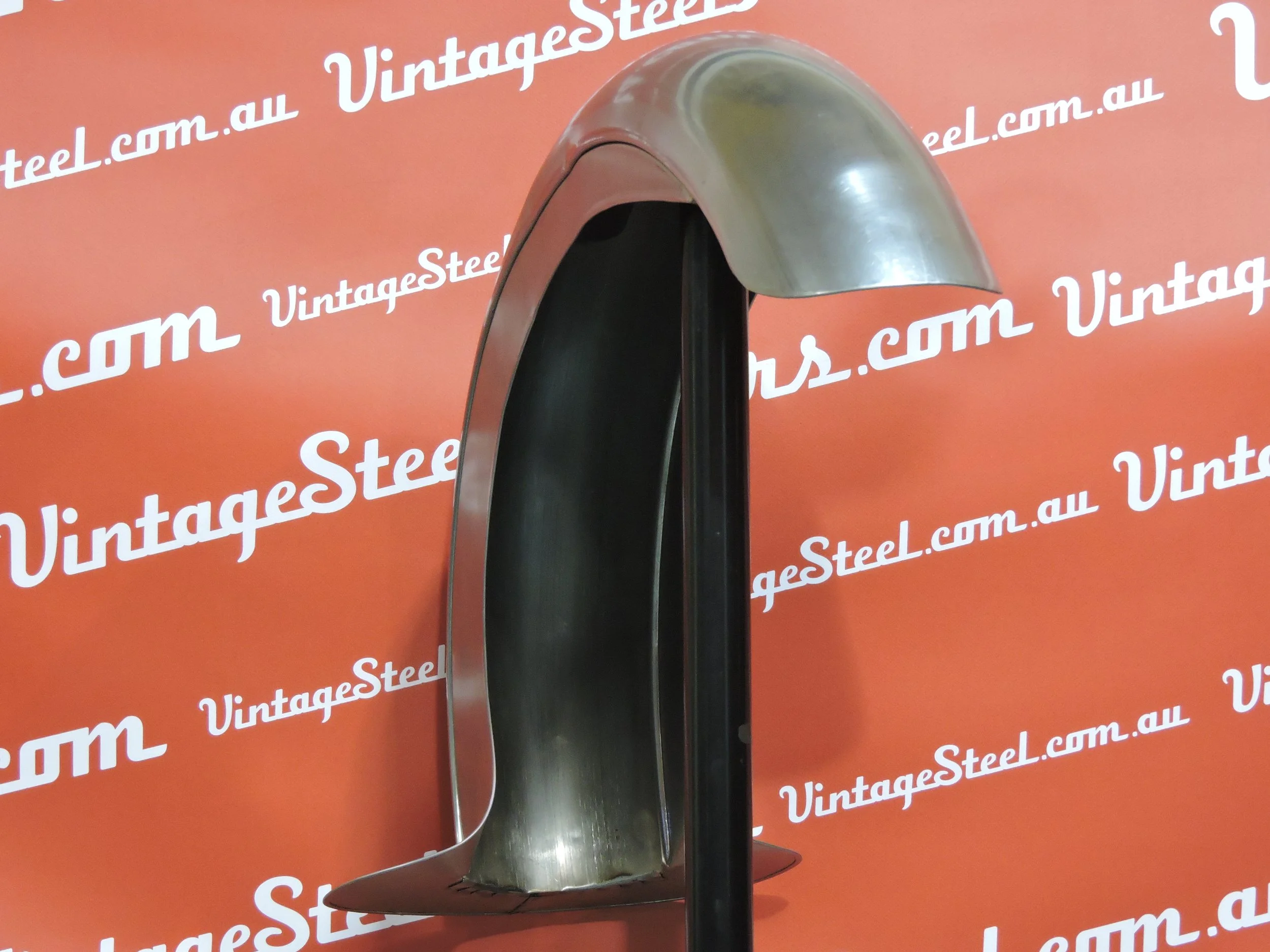

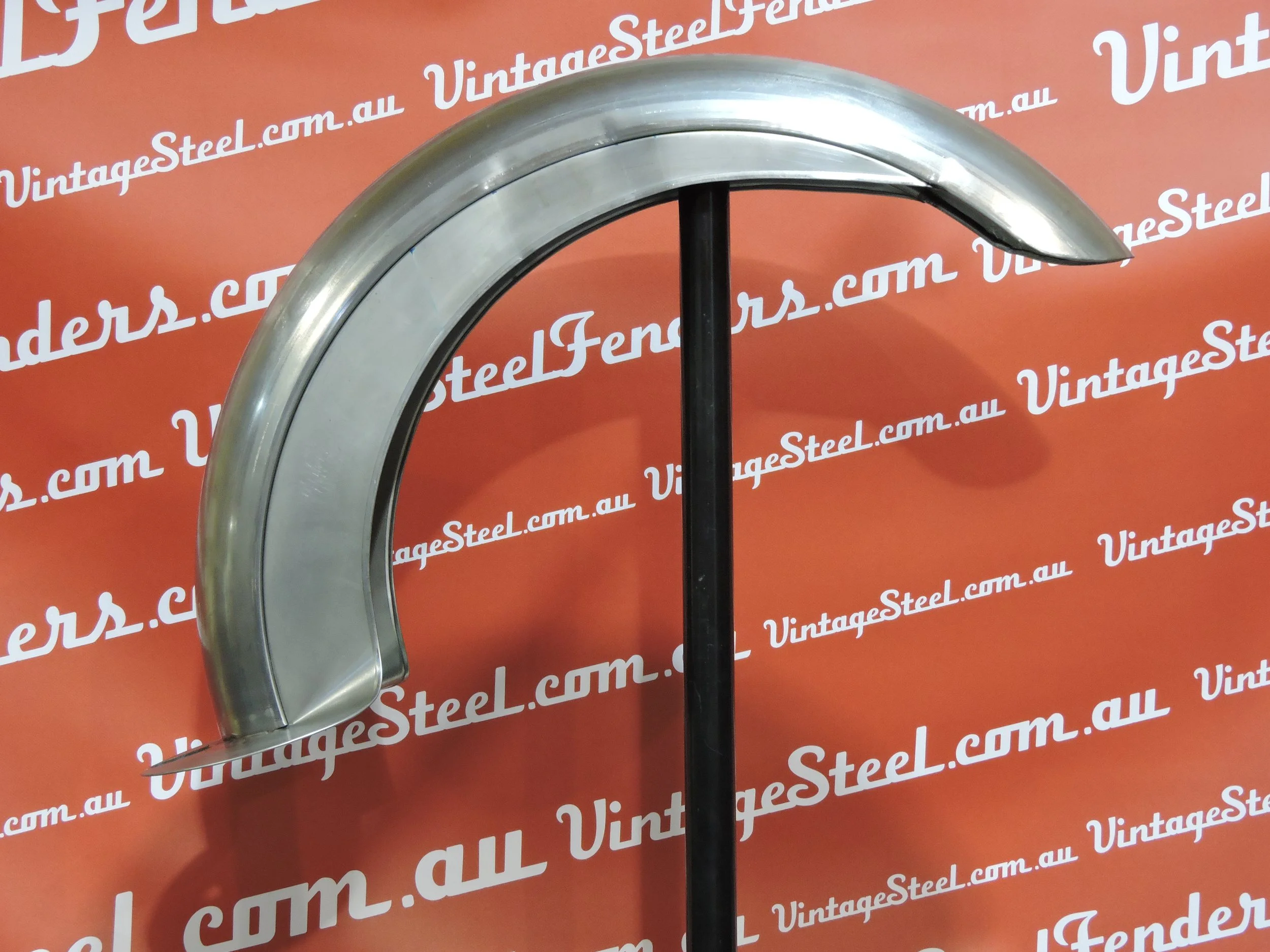

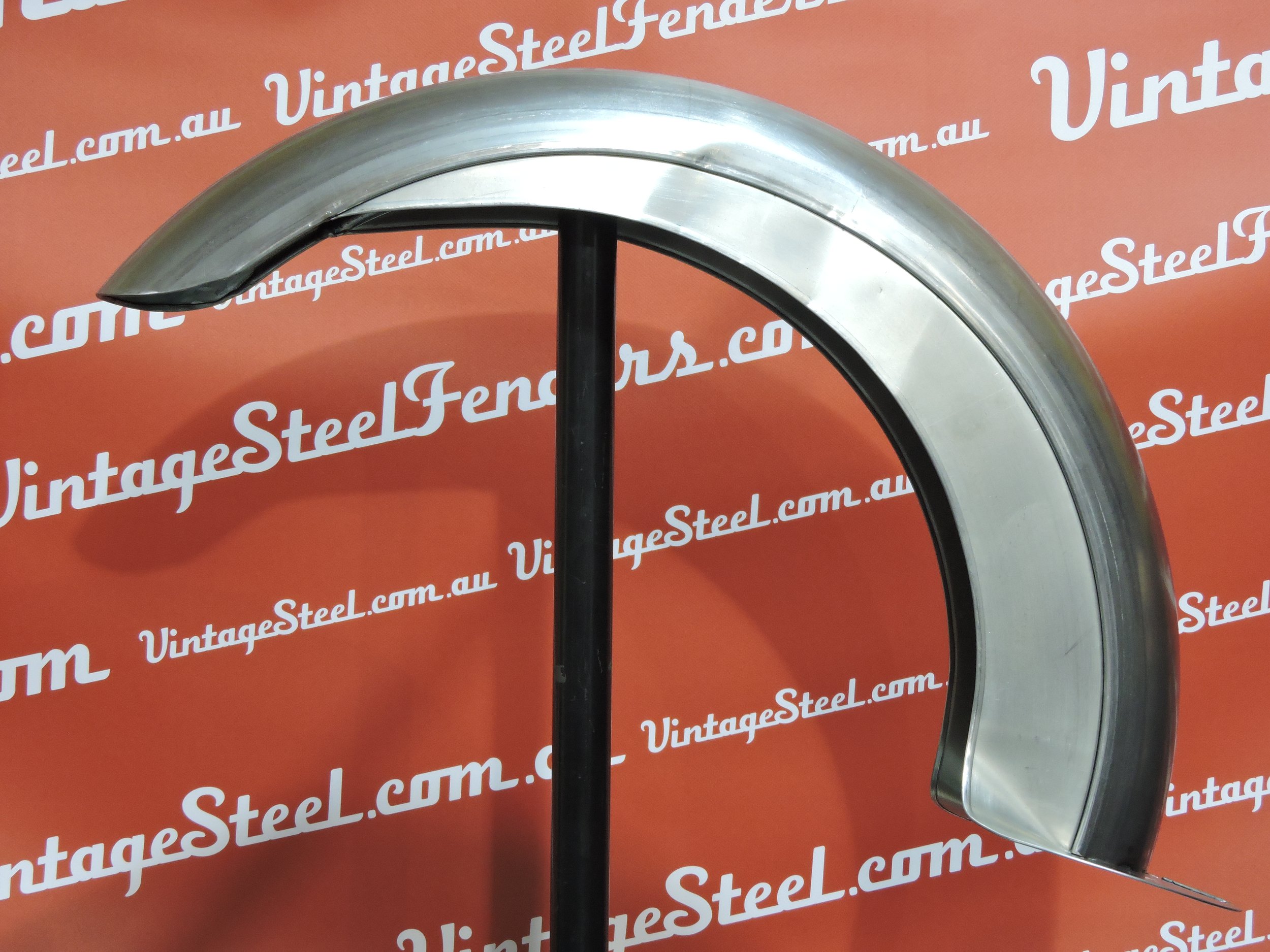

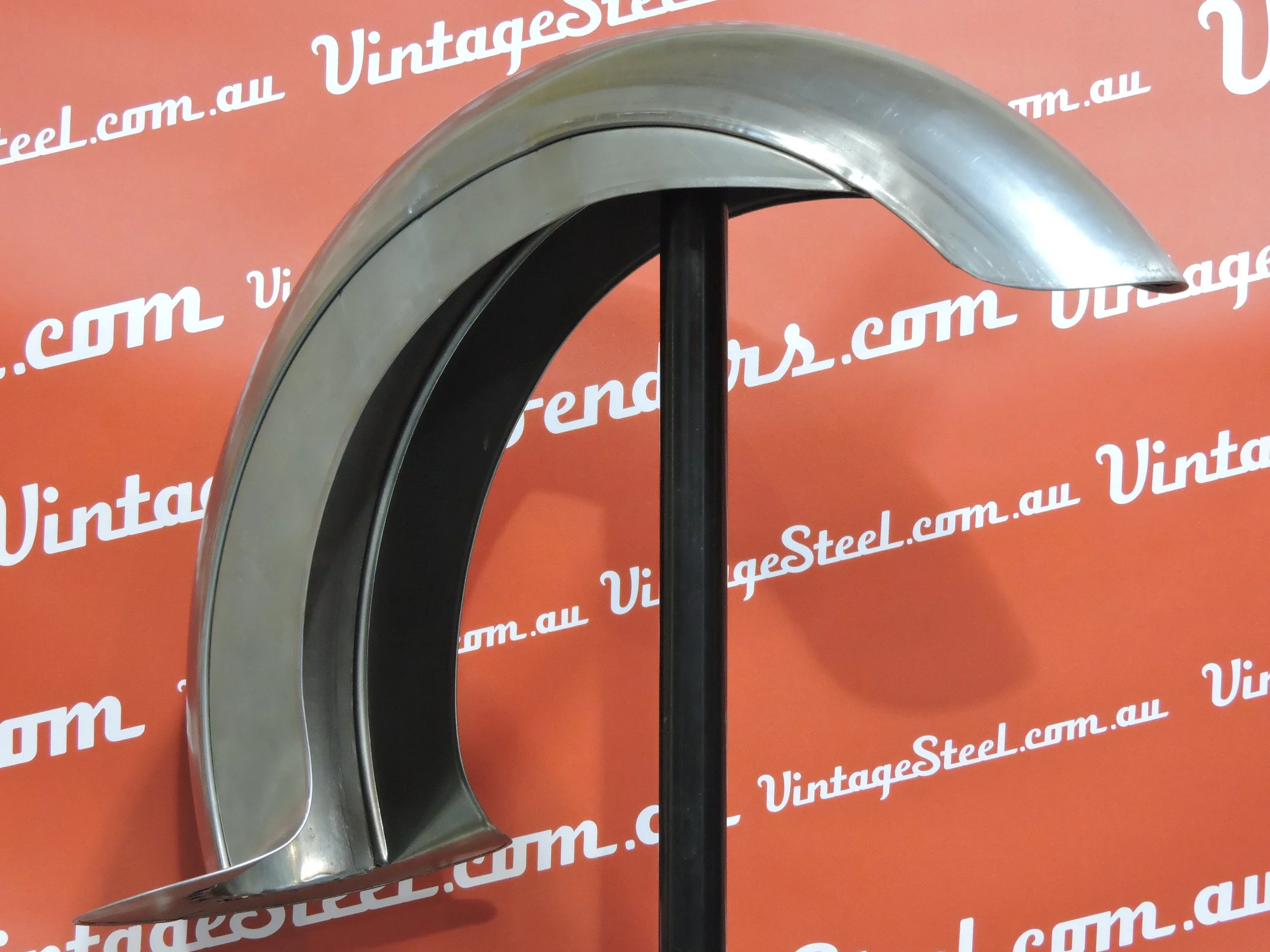

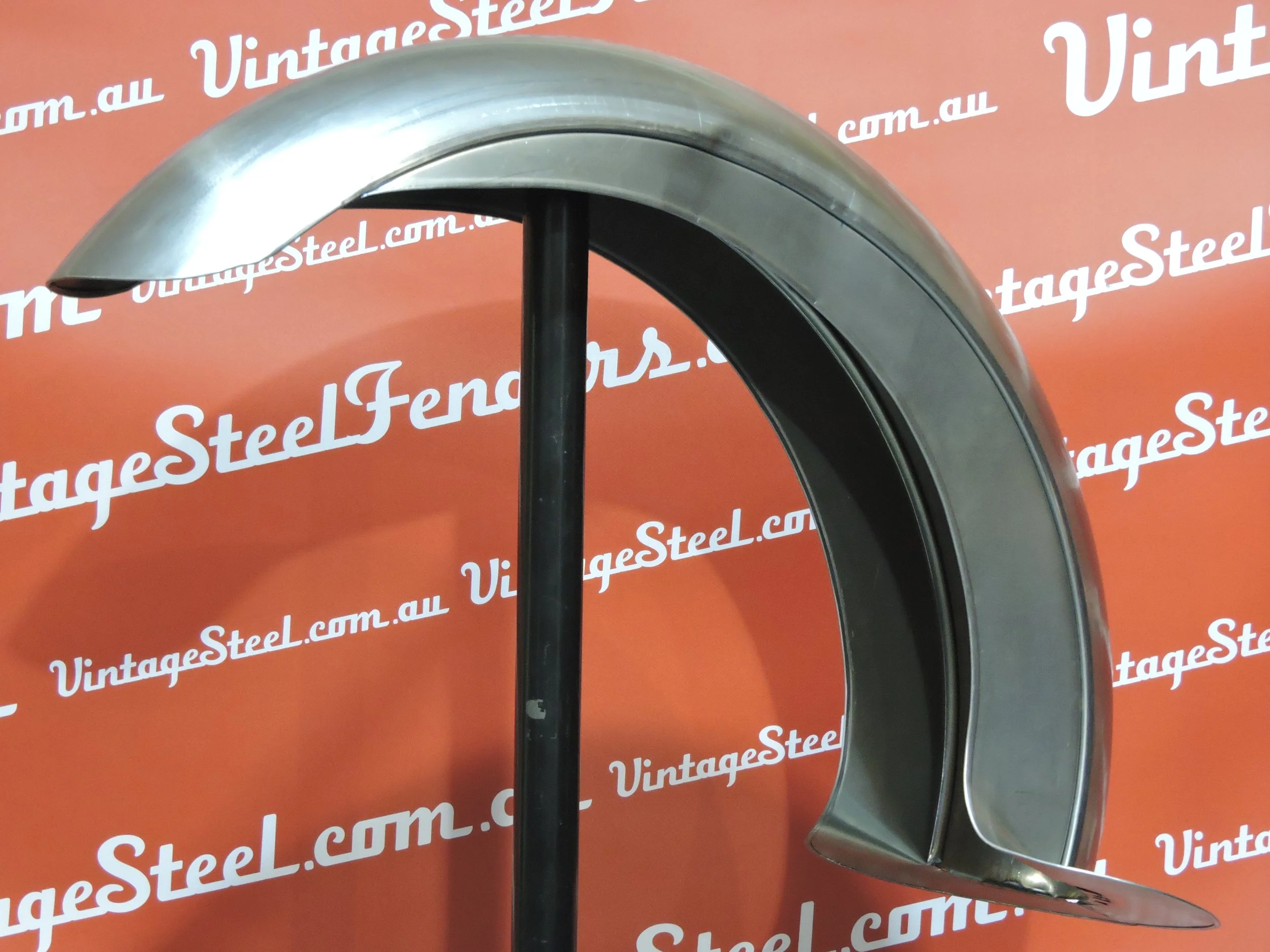

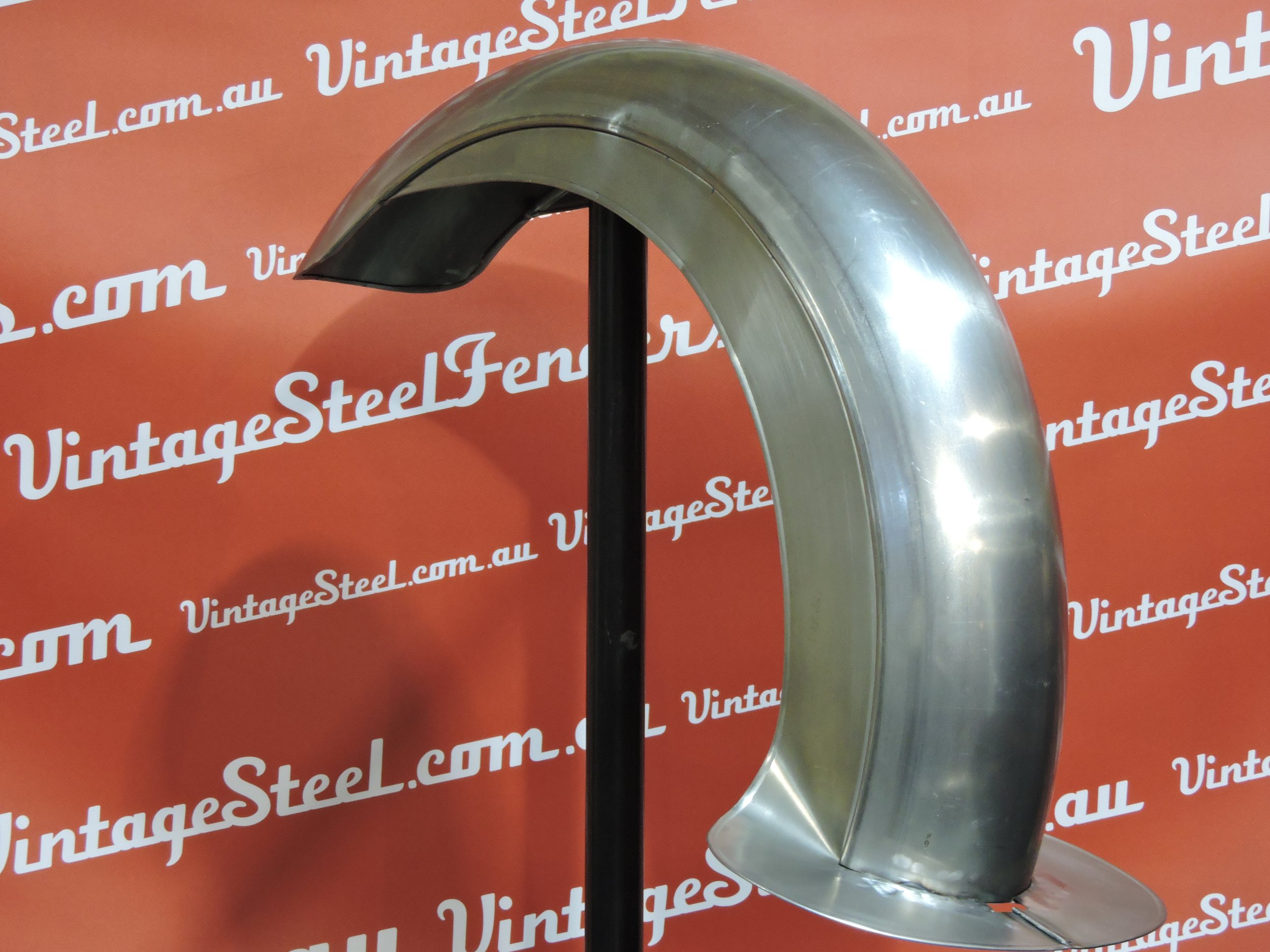

/This deep C section rolled edge front mudguard is based on factory drawing M4154 for the 1932 Rudge Special. The nose end has a folded safety edge. The full length side valances have a lipped safety edge and are roll-swaged into the rolled edge of the guard. The valances then sweep around into a spot-welded skirt at the tail. The two ends have a hooked fold-over join with a square hole for the front stand retaining tab. Overall finished width of this guard blade is approx 143mm so there is also a shallow pressing in the guard and valances for fork clearance. Our client for this one elected to re-use the original bracket which will be riveted in the nose end. Bracket available on request
Price as pictured is AU$975 (no bracket) #31RUDFF-10W
