Triumph Veteran Front 1909-23 #04-1

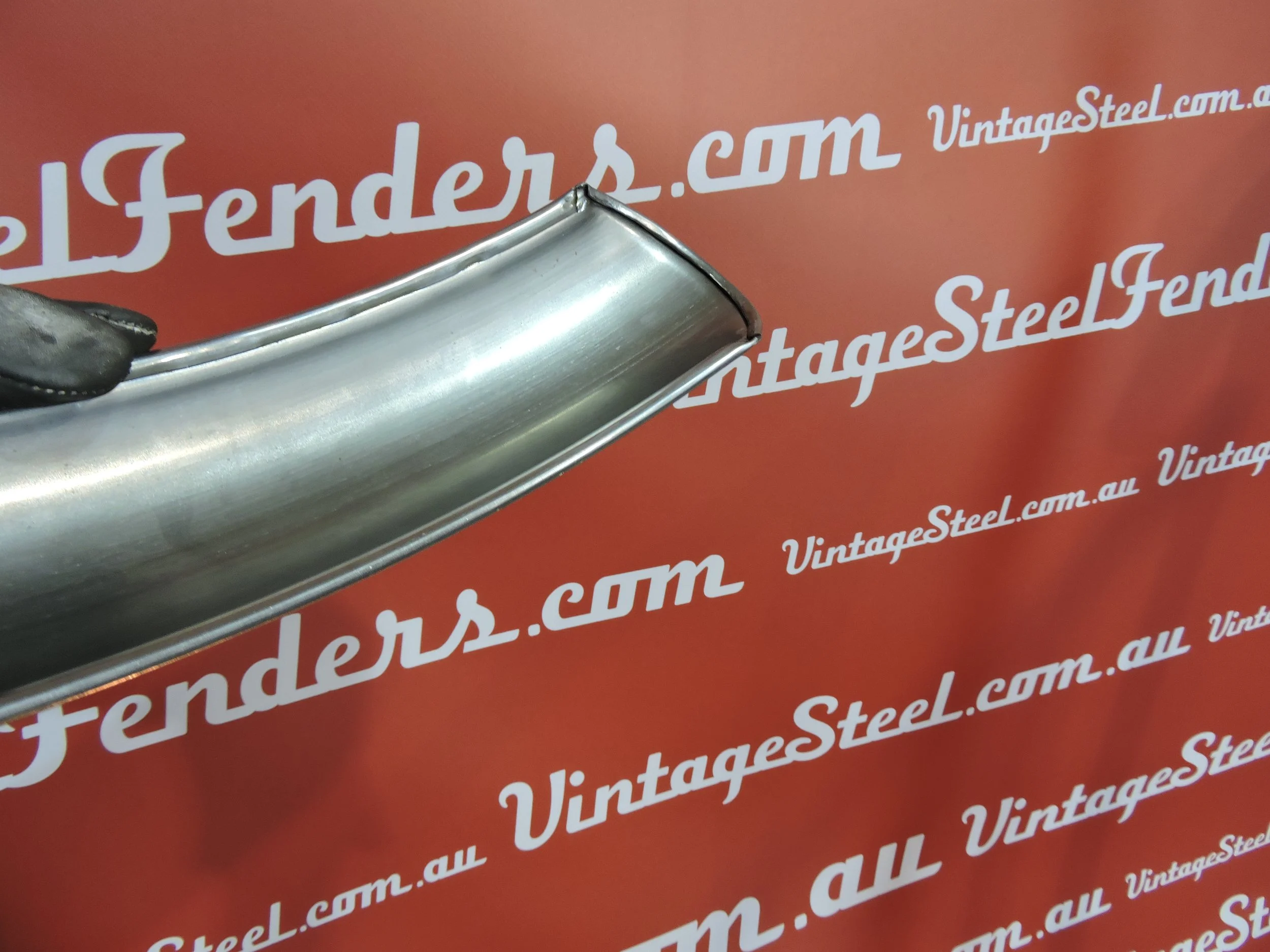

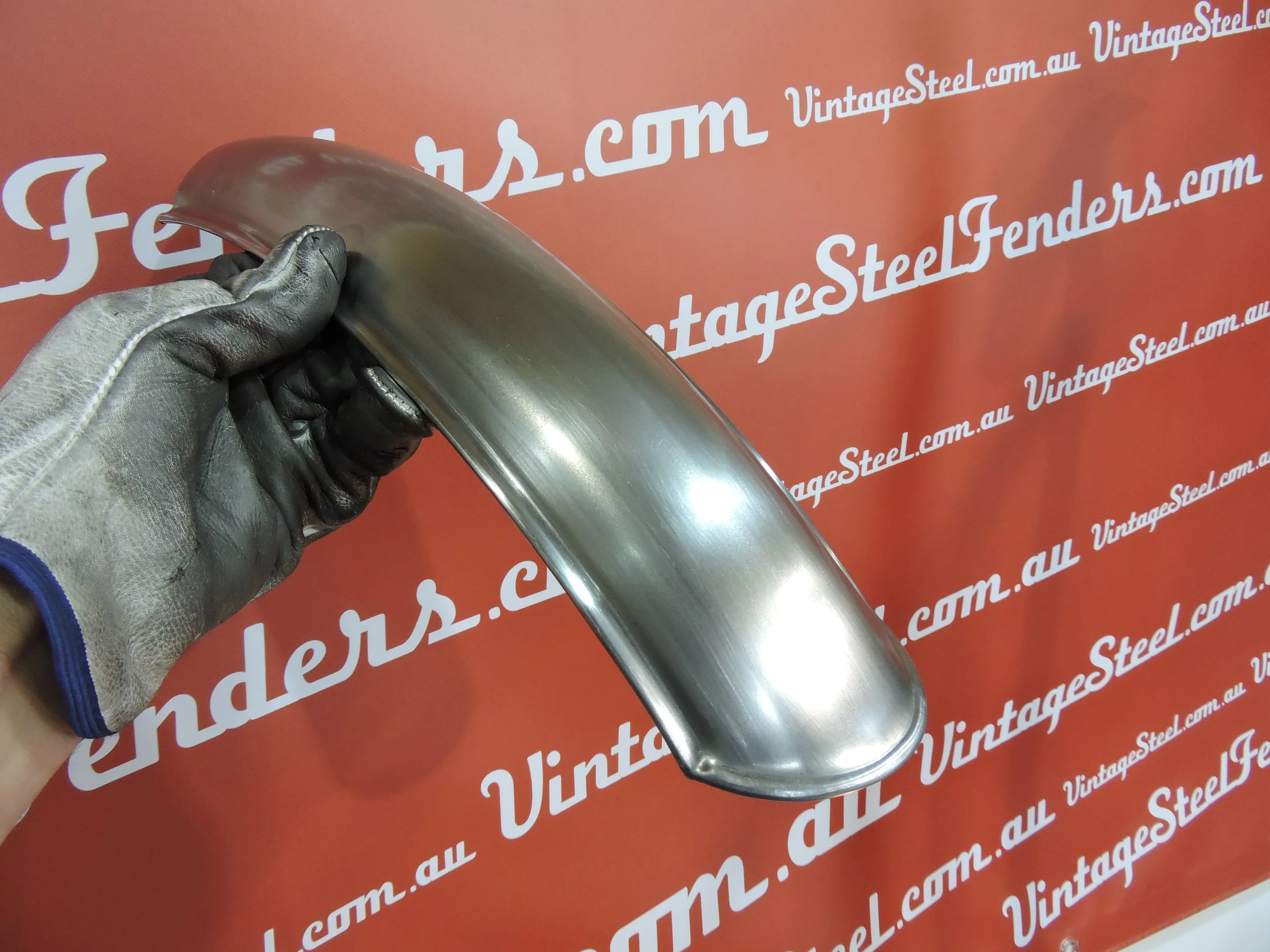

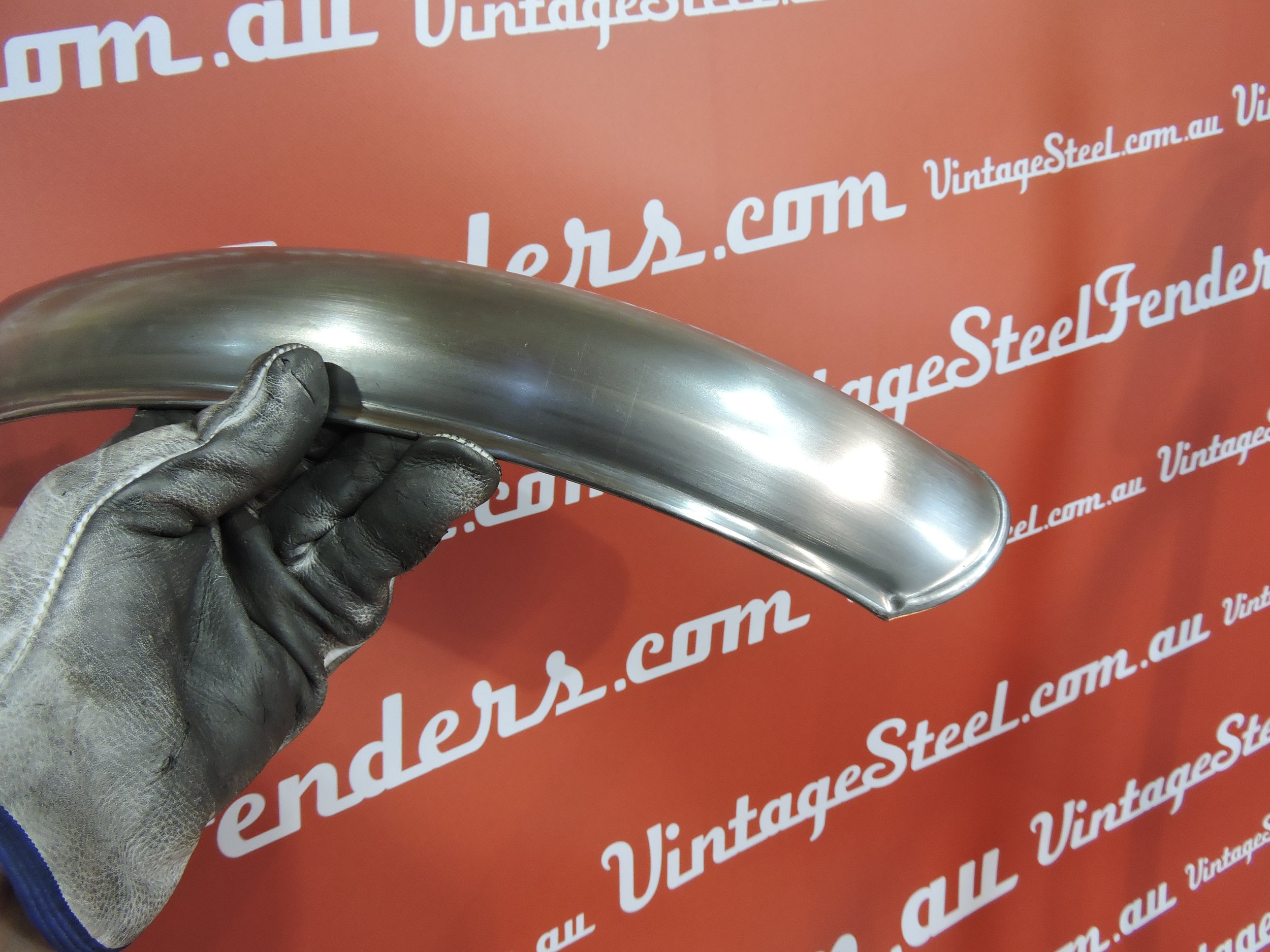

Triumph motorcycles used this profile of mudguard / fender from 1909 to 1923.  This guard measures 90mm wide x 30mm deep including the Panama Hat style protruding rolled edges. It has a pressed and rolled nose plus fork relief pressings. It can be ordered as a plain guard or with any combination of riveted brackets to suit your year model.
The centre bronze casting came in four different versions we have seen so far, possibly growing in size over the years. Type 1 is a very small one with two rivets, Type 2 is larger, also with two rivets, Type 3 is larger again, now with four rivets and Type 4 is the largest with six rivets. We cast these to order and are available at $110ea loose or $186 fitted.
The internal brackets for rod stays are pressed to shape and supplied $66ea loose or $104 fitted. For 1909 and 1910 there should be one at the nose end and another at the tail. For 1911 on, the front stand doubled as the tail end mudguard stay so only one bracket at the nose end is needed. If you wish to supply any of the brackets, we can rivet these on too.
Other versions of this profile are available for BSA, Rex etc.
Earlier model (1906-08) Triumph profile guards are also available (see links below)
For 1909 & 1910 models, we have not marked out the details for the front brake stirrup to pass through the edge of the guard because we haven’t seen a good sample yet..

Price as a front guard with raised rolled nose and fork clearance pressings AU$441
Fitted Brackets - add $104 ea
Fitted Casting - add $186
Complete with one bracket and casting AU$834 #04TRIFF-1
Please contact us for more info.
